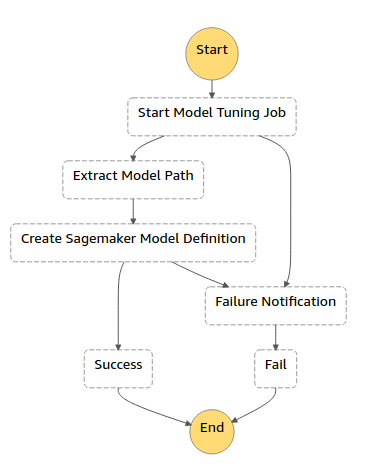

# sagemaker-model-tuner > A Sagemaker model hyper-parameter tuning serverless application as a Cloudformation stack [![PRs Welcome](https://img.shields.io/badge/PRs-welcome-brightgreen.svg?style=flat-square)](contributing.md) [![CodeBuild](https://s3-us-west-2.amazonaws.com/codefactory-us-west-2-prod-default-build-badges/passing.svg)](https://s3-us-west-2.amazonaws.com/codefactory-us-west-2-prod-default-build-badges/passing.svg) Current version: **1.0.0** Lead Maintainer: [Anil Sener](mailto:senera@amazon.com) ## 📋 Table of content - [Installation](#-install) - [Metrics](#-metrics) - [Pre-requisites](#-pre-requisites) - [Description](#-description) - [Usage](#-usage) - [Screenshots](#-screenshots) - [See also](#-see-also) ## 🚀 Install In order to add this block, head to your project directory in your terminal and follow the steps in [Pre-requisites](#-pre-requisites) and [Usage](#-usage) sections below. > ⚠️ You need to have the [AWS SAM CLI](https://docs.aws.amazon.com/serverless-application-model/latest/developerguide/serverless-sam-cli-install.html) installed on your deployment machine before installing this package. ## 📊 Metrics The below metrics displays approximate values associated with deploying and using this block. Metric | Value ------ | ------ **Type** | Architecture **Installation Time** | Less than 1 minute **Audience** | Developers, Solutions Architects **Requirements** | [aws-sam](https://docs.aws.amazon.com/serverless-application-model/latest/developerguide/serverless-sam-cli-install.html),[Python3.8](https://www.python.org/downloads/) ## 🎒 Pre-requisites - Ensure you have installed the [AWS SAM CLI](https://docs.aws.amazon.com/serverless-application-model/latest/developerguide/serverless-sam-cli-install.html) on your deployment machine. - Make sure that you have a [Sagemaker Algorithm Resource](https://docs.aws.amazon.com/sagemaker/latest/dg/sagemaker-mkt-create-algo.html) or a [Sagemaker Algorithm on AWS Marketplace](https://docs.aws.amazon.com/sagemaker/latest/dg/sagemaker-marketplace.html) already created in the AWS region in which you will execute the step-function associated with this block. A Sagemaker Algorithm Resource requires model training and inference docker image URIs. These images can be either [pre-built](https://docs.aws.amazon.com/sagemaker/latest/dg/sagemaker-algo-docker-registry-paths.html) or custom. You can create a [Sagemaker Algorithm Resource](https://docs.aws.amazon.com/sagemaker/latest/dg/sagemaker-mkt-create-algo.html) taking [H2O GBM Algorithm Resource](https://github.com/aws-samples/amazon-sagemaker-h2o-blog/tree/master/h2o-gbm-algorithm-resource) project as a reference. - Ensure your [Sagemaker Hyperparameter Tuning Job](https://docs.aws.amazon.com/sagemaker/latest/dg/automatic-model-tuning.html) is provisioned with enough service limits (e.g model training, managed spot training, max parallel training job limits). - Ensure you have an [S3 VPC endpoint](https://docs.aws.amazon.com/vpc/latest/userguide/vpc-endpoints-s3.html) or a [VPC NAT device](https://docs.aws.amazon.com/vpc/latest/userguide/vpc-nat.html) associated to the subnets defined for model tuning process. ## 🔰 Description This block is to build the infrastucture required to implement an Amazon Sagemaker Model Hyperparameter Tuning Process. It creates a Step Function called `ModelTuningStateMachine` which natively integrates with Amazon Sagemaker, AWS Lambda & Amazon SNS entities that are created. This block can be used both as a standalone project or a dependency for other projects which will involves an Amazon Sagemaker Model Hyperparameter Tuning at any stage.

## 🛠 Usage 1. Deploy the package via the SAM CLI providing the settings for deployment. ```sh sam deploy --guided ``` 2. Observe the deployed `sagemaker-model-tuner` Serverless Application in the AWS Console. 3. Navigate to the `ModelTuningStateMachine` step function in the AWS Console. 4. Select the `Start Execution` button and submit the below JSON payload.
See a sample of JSON payload

```json { "tuningJobName": "survival-model-tuning-job", "tuningStrategy": "Bayesian", "maxNumberOfTrainingJobs": 10, "maxParallelTrainingJobs": 10, "trainingJobDefinitionName":"training-job-def-0", "algorithmARN": "arn:aws:sagemaker:::algorithm/h2o-gbm-algorithm", "trainingJobEarlyStoppingType": "Auto", "enableManagedSpotTraining": true, "spotTrainingCheckpointS3Uri": "s3:///model-training-checkpoint/", "inputContentType": "text/csv", "trainingInstanceType":"ml.c5.2xlarge", "trainingInstanceVolumeSizeInGB": 30, "channels": [ { "channelName":"training", "s3DataSource": { "AttributeNames": [ ], "S3DataDistributionType": "FullyReplicated", "S3DataType": "S3Prefix", "S3Uri": "s3:///titanic/training/train.csv" } }, { "channelName":"validation", "s3DataSource": { "AttributeNames": [], "S3DataDistributionType": "FullyReplicated", "S3DataType": "S3Prefix", "S3Uri": "s3:///titanic/validation/validation.csv" } } ], "parameterRanges": { "IntegerParameterRanges": [ { "Name": "ntrees", "MinValue": "10", "MaxValue": "100", "ScalingType": "Linear" }, { "Name": "min_rows", "MinValue": "10", "MaxValue": "30", "ScalingType": "Linear" }, { "Name": "max_depth", "MinValue": "3", "MaxValue": "7", "ScalingType": "Linear" }, { "Name": "score_tree_interval", "MinValue": "5", "MaxValue": "10", "ScalingType": "Linear" } ], "ContinuousParameterRanges": [ { "Name": "learn_rate", "MinValue": "0.001", "MaxValue": "0.01", "ScalingType": "Logarithmic" }, { "Name": "sample_rate", "MinValue": "0.6", "MaxValue": "1.0", "ScalingType": "Auto" }, { "Name": "col_sample_rate", "MinValue": "0.7", "MaxValue": "0.9", "ScalingType": "Auto" } ], "CategoricalParameterRanges": [ ] }, "staticHyperParameters":{ "stopping_metric":"auc", "training": "{'classification': 'true', 'target': 'Survived', 'distribution':'bernoulli','ignored_columns':'PassengerId,Name,Cabin,Ticket','categorical_columns':'Sex,Embarked,Survived,Pclass,Embarked'}", "balance_classes":"True", "seed": "1", "stopping_rounds":"10", "stopping_tolerance":"1e-9" }, "model":{ "name": "survival-model", "artifactsS3OutputPath":"s3:///model-artifacts/", "artifactType": "MOJO", "trainingSecurityGroupIds": ["sg-c1c27b81"], "trainingSubnets": ["subnet-1e980630"], "hosting": { "initialInstanceCount": "1", "instanceType": "ml.m5.xlarge", "inferenceImage": ".dkr.ecr..amazonaws.com/h2o-gbm-predictor", "subnets": ["subnet-1e980630","subnet-bf64c381"], "securityGroupIds": ["sg-c1c27b81"] } } } ```

5. A new execution of the state machine will be triggered and the hyperparameter tuning process will start. ### SAM CLI Deployment Options The deployment options that you can pass to the Sagemaker Model Tuner Serverless Application are described below. Name | Default value | Description -------------- | ------------- | ----------- **Stack Name** | sam-app | Name of the stack/serverless application for example `sagemaker-model-tuner`. **AWS Region** | None | AWS Region to deploy the infrastructure for Sagemaker Model Tuner Serverless Application. **Parameter Environment** | `development` | Environment to tag the created resources. ### Step Function Invocation Parameters The different parameters that you can pass to the model tuning step-function are described below. Name | Description -------------- | ------------- **tuningJobName** | A Unique Name for Amazon Sagemaker Hyper-paramemeter Tuning Job. **tuningStrategy** | Tuning Job hyperparmater search strategy, valid options are `Bayesian` | `Random`. **maxNumberOfTrainingJobs** | Initial number of Instances at the creation time of Amazon Sagemaker Model Endpoint. **maxParallelTrainingJobs** | Maximum number of training jobs executed in parallel during Sagemaker Hyperparameter Tuning Job Execution. You can set this up to `10` parallel training jobs (soft limit). **trainingJobDefinitionName** | Training Job Definition name **algorithmARN** | Arn of [Sagemaker Algorithm Resource](https://docs.aws.amazon.com/sagemaker/latest/dg/sagemaker-mkt-create-algo.html) to be used in model training and tuning. **autoscalingMinCapacity** | Minimum Number of Instances allowed to Scale In by Automatic Scaling Mechanism. **autoscalingMaxCapacity** | Maximum Number of Instances allowed to Scale Out by Automatic Scaling Mechanism. **trainingJobEarlyStoppingType** | Enable or disable early stopping for training jobs launched by Hyperparameter Tuning Job. Valid options are `AUTO` | `Off` . **aenableManagedSpotTraining** | Enable or disable Managed Spot Training. Valid options are `true` | `false` **spotTrainingCheckpointS3Uri** | Managed Spot Training S3 Checkpointing Location. Should be set as `""`, if managed spot training will not be used. **inputContentType** | A valid Content Type permitted by Amazon Sagemaker Algorithm for all input channels channel. **trainingInstanceType** | A valid EC2 Instance type permitted by Amazon Sagemaker Algorithm to execute the training jobs. **trainingInstanceVolumeSizeInGB** | Training Instance Storage Volumen in GBs- **channels** | The array of Input Data Channels. Total number of channels should match with the required channels by given Sagemaker Algorithm Resource. **- channelName** | Name of the input channel as defined in Sagemaker Algorithm Resource. **- s3DataSource** | S3 Data Source Input Definition for the given input channel. **-- AttributeNames** | A list of one or more attribute names to use that are found in a specified augmented manifest file. **-- S3DataDistributionType** | Define how to distribute the data inputs to tuning job hosts. Valid options are `FullyReplicated` | `ShardedByS3Key`. **-- S3DataType** | Valid options are `ManifestFile` | `S3Prefix` | `AugmentedManifestFile` **-- S3Uri** | Depending on the value specified for the S3DataType, identifies either a key name prefix or a manifest. **parameterRanges** | Define tunable hyperparameters as defined in Sagemaker Algorithm Resource. **- IntegerParameterRanges** | The array of IntegerParameterRange json objects that specify ranges of integer hyperparameters that a hyperparameter tuning job searches. Maximum number of `20` items. **- ContinuousParameterRanges** | The array of ContinuousParameterRange json objects that specify ranges of continuous hyperparameters that a hyperparameter tuning job searches. Maximum number of `20` items. **- CategoricalParameterRanges** | The array of CategoricalParameterRange json objects that specify ranges of categorical hyperparameters that a hyperparameter tuning job searches. Maximum number of `20` items. **staticHyperParameters** | Specify the values of hyperparameters that do not change for the tuning job. **model** | Parameters related to model. **- name** | A Unique Name for the best Sagemaker Model selected by Hyperparameter Tuning Process, exactly as defined in Amazon Sagemaker API. **- artifactsS3OutputPath** | An S3 location to store the model artifacts produced by Hyperparameter Tuning Process. **- artifactType** | An Amazon Sagemaker algorithm like H2O Bring Your Own Algorithm (BYOA) image can produce `MOJO` | `BINARY` type artifacts using a container environmental variable. If it is not necessary to specify it, it can be set as empty string. **- hosting** | Details of the production variant should be defined for the process. **-- initialInstanceCount** | Initial number of Amazon Sagemaker Model Hosting instances at the creation time of Amazon Sagemaker Model Endpoint. **-- instanceType** | Instance type which is allowed to be used by Amazon Sagemaker Model. **-- inferenceImage** | (Optional) - URI of model inference/hosting docker image to serve the Amazon Sagemaker Model. If not specified, inference image will be taken from Sagemaker Algorithm Resource. **-- acceleratorType** | (Optional) - Elastic Inference Accelerator Type for Amazon Sagemaker Model Endpoint. **-- subnets** | Subnets to launch the Amazon Sagemaker Model Hosting instances **-- securityGroupIds** | Security Group Ids to control access ingress/egress for Amazon Sagemaker Model Hosting instances ## 📷 Screenshots Below are different screenshots displaying how the different stage of a Sagemaker Model Tuning looks like in the AWS Console. ### The state machine during execution You can see below a current execution of the `ModelTuningStateMachine` in the AWS Step Functions console.

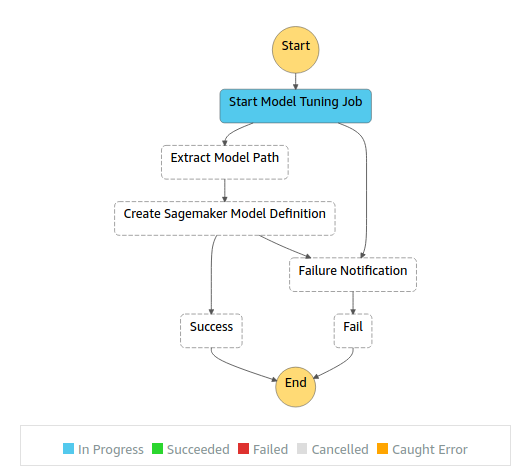

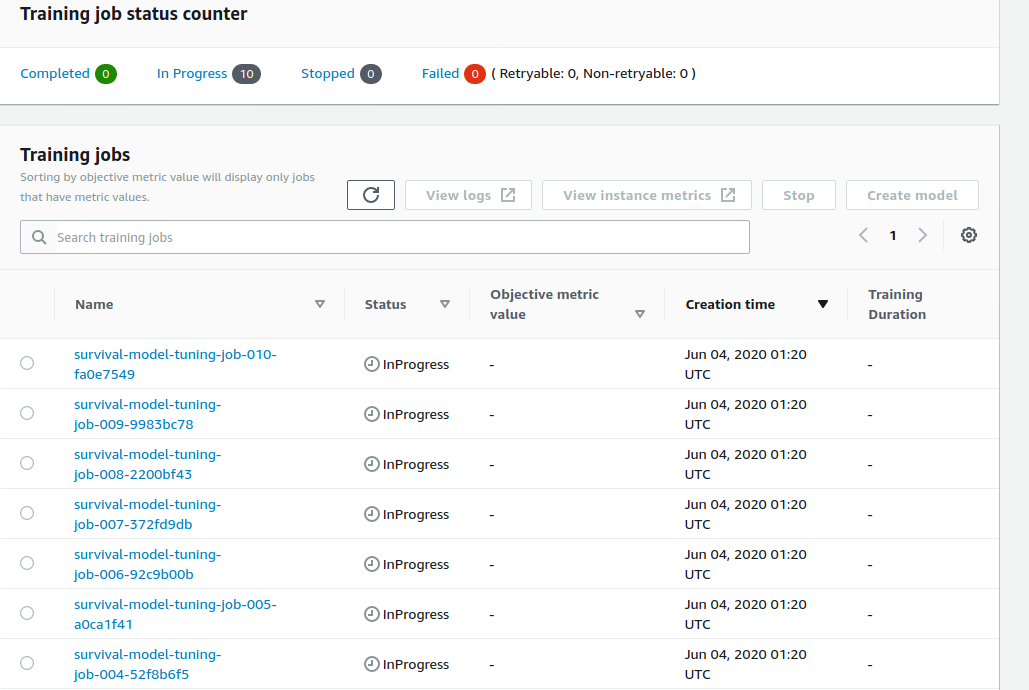

### The Sagemaker Hyperparameter Tuning Job during execution Below is a screenshot of training jobs with `InProgress` status created by Sagemaker Hyperparameter Tuning Job.

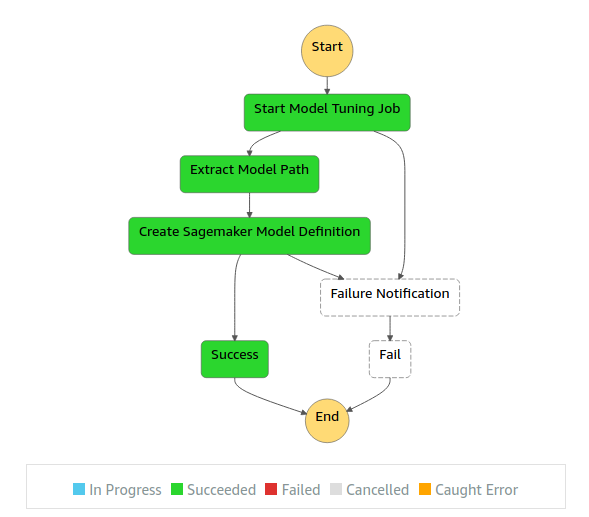

### The state machine after a successful completion You can see below a screenshot of a successful hyperparameter tuning job operated by `ModelTuningStateMachine` in the AWS Step Functions console.

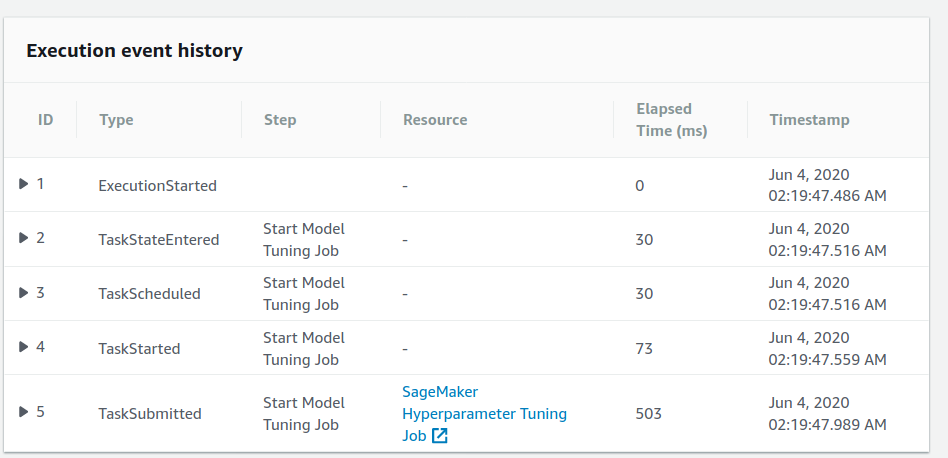

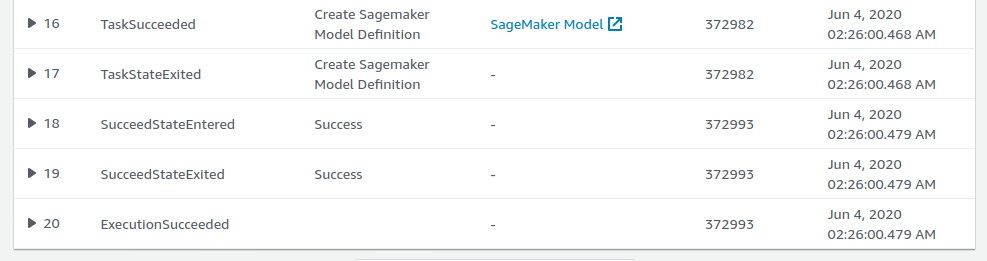

You can see below a current execution event history of the model tuning state machine in the AWS Step Functions console. Navigate to `SageMaker Hyperparameter Tuning Job` link to track status of the model tuning in detail.

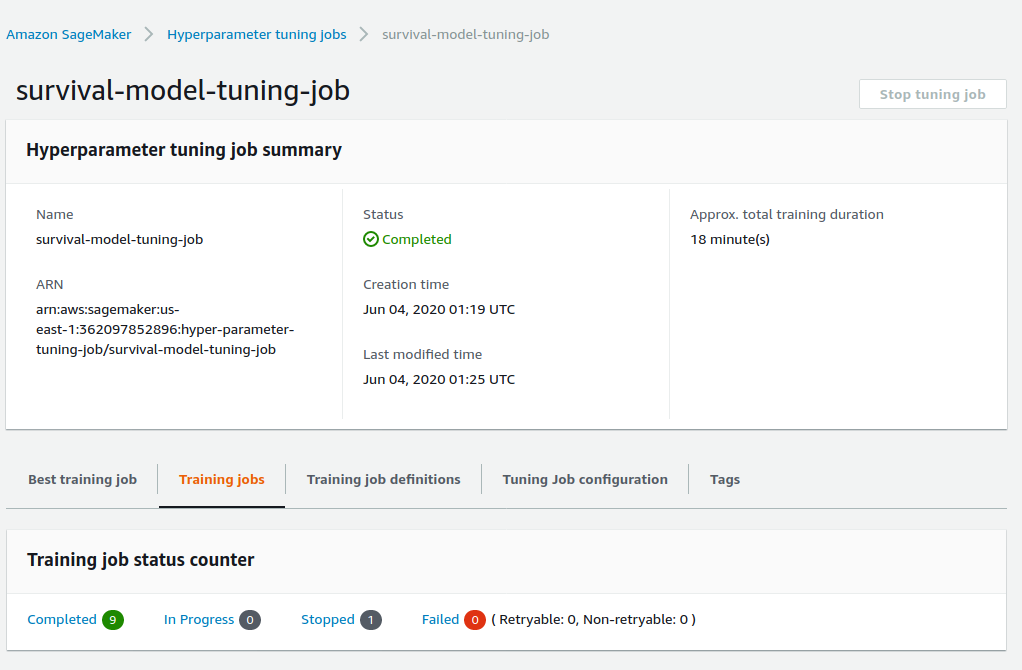

### The Sagemaker Hyperparameter Tuning Job after successful completion Below is a screenshot of training jobs with `Completed` and `Stopped` (due to early stopping feature) status created by Sagemaker Hyperparameter Tuning Job.

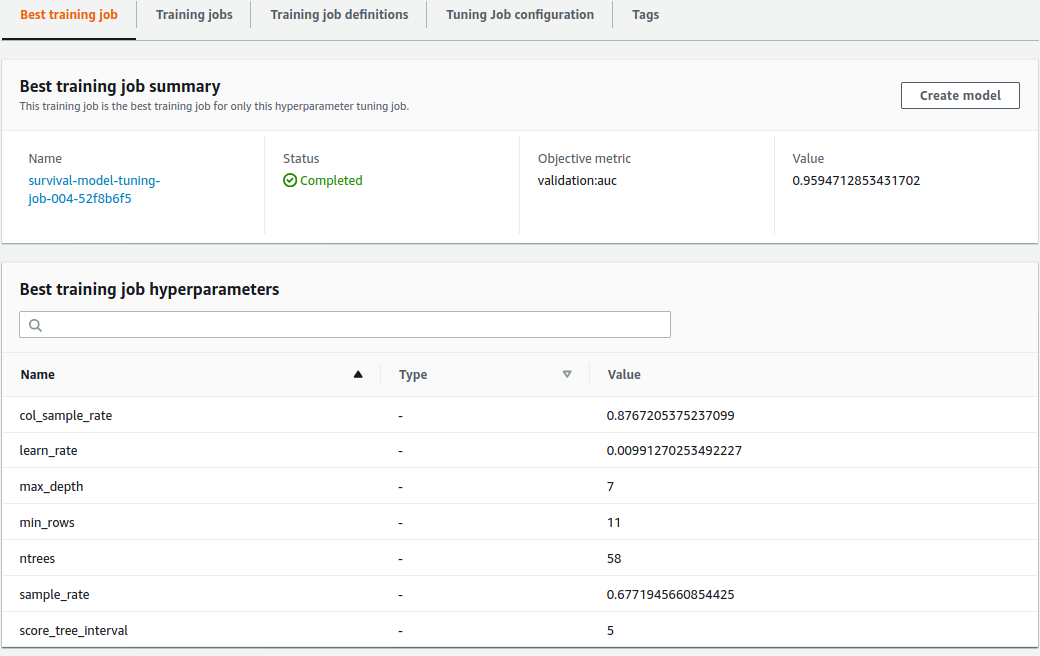

Below is a screenshot of the performance and configuration details of the training job which created the best model selected by Sagemaker Hyperparameter Tuning Job.

### Created Amazon Sagemaker Model Navigate to `SageMaker Model` link to the Sagemaker Model Definition in detail.

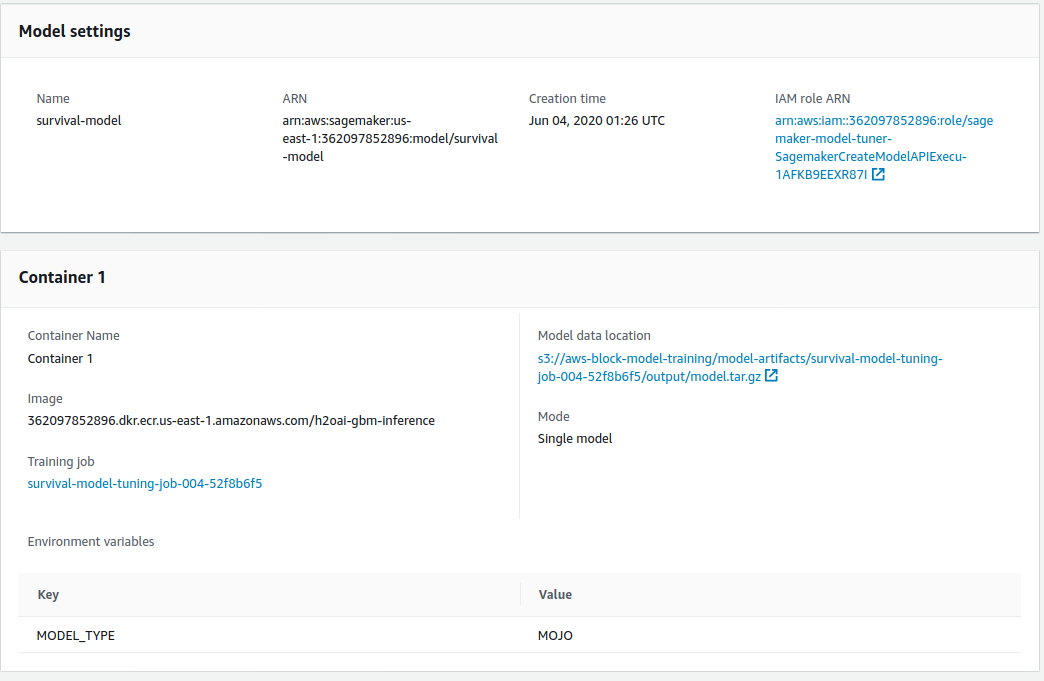

Below is a screenshot of the detailed settings associated with the Sagemaker Model such as the location of model artifact and inference image in the AWS Console.

## 👀 See also - The [AWS Sagemaker](https://docs.aws.amazon.com/sagemaker/latest/dg/whatis.html) official documentation. - The [AWS Steps Function](https://docs.aws.amazon.com/step-functions/latest/dg/welcome.html) official documentation. - The [ML Parameter Provider](https://github.com/aws-samples/amazon-sagemaker-h2o-blog/tree/master/ml-parameter-provider) project. - The [H2O GBM Trainer](https://github.com/aws-samples/amazon-sagemaker-h2o-blog/tree/master/h2o-gbm-trainer) project. - The [H2O GBM Predictor](https://github.com/aws-samples/amazon-sagemaker-h2o-blog/tree/master/h2o-gbm-predictor) project. - The [H2O GBM Algorithm Resource](https://github.com/aws-samples/amazon-sagemaker-h2o-blog/tree/master/h2o-gbm-algorithm-resource) project.
