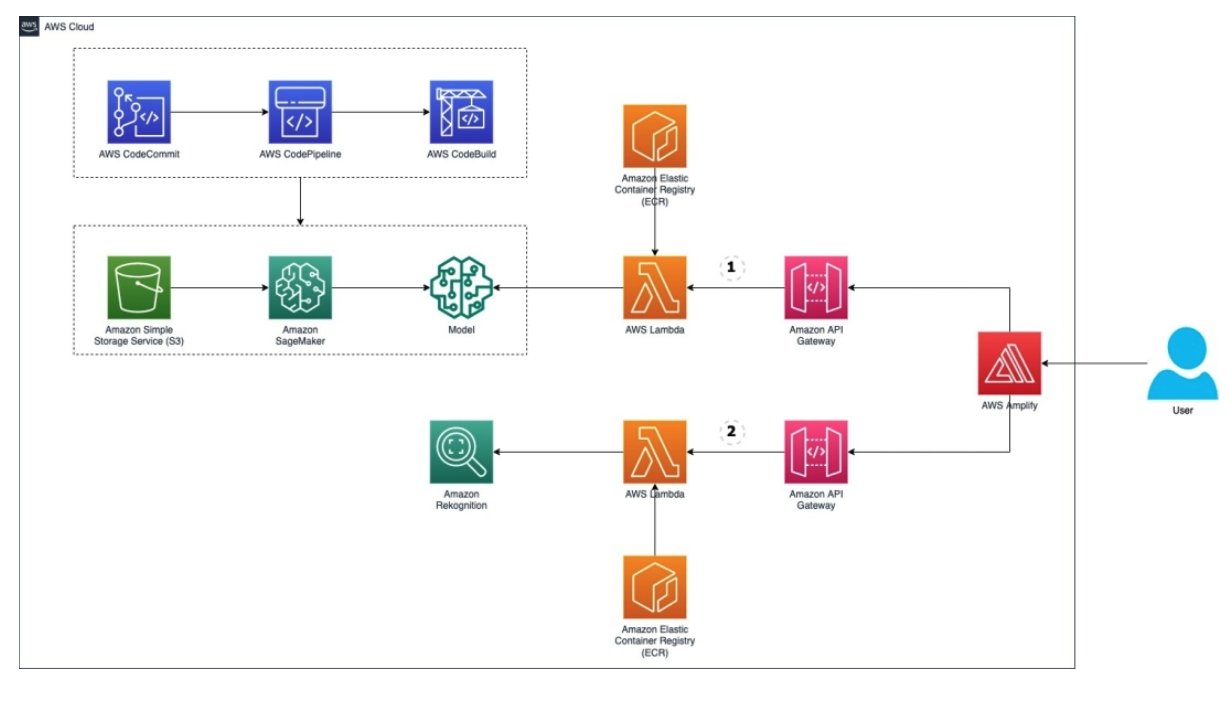

# Car positioning application # Description Some user applications can have specific requirements on the angle at which a product is placed on, in an image. A scalable , user friendly solution is provided in a ready to deploy fashion, to detect the car's angle relative to the camera , using AWS services. ## Architecture Users upload the image to be processed on the front end, constructed with AWS Amplify. The application recieves the request via a API gateway. The Request triggers a corresponding Lambda function to complete the processing. The final result of the evaluation is stored in S3. The Dockerfiles deployed using Lambda are stored in ECR. ![Alt text](solution_architecture.png?raw=true "Title") More information on the services can be found here AWS Rekognition : https://aws.amazon.com/rekognition/ AWS Amplify: https://aws.amazon.com/amplify/ Amazon Sagemaker : https://aws.amazon.com/sagemaker/ AWS API Gateway: https://aws.amazon.com/api-gateway/ AWS Lambda : https://aws.amazon.com/lambda/ ## Structure of the repo The repo includes the following directories car-angle-detection-ml-repo : contains the necessary scripts to train the 'Detectron' Mask RCNN Model that detects different car parts and subsequently compute the car angle. car-angle-detection-website-repo: contains the HTML code for the front end , that receives the user input. car-angle-detection: contains the CDK stack that deploys the entire application Lambda: contains the individual Lamba Functions to trigger the Sagemaker endpoints , Rekognition API # Getting Started ## Prerequisites For this walkthrough, you should have the following prerequisits: 1. [AWS account](https://aws.amazon.com/) 2. An [AWS user](https://docs.aws.amazon.com/IAM/latest/UserGuide/id_users.html) with permissions to deploy and provision the infrastructure, e.g. [PowerUserAccess](https://docs.aws.amazon.com/IAM/latest/UserGuide/access_policies_job-functions.html) (note: permissions would need to be restricted further for a production-ready application, and will depend on how the application is integrated with others) 3. [Docker](https://www.docker.com/) installed and running in your development environment (this could, for example, be a local machine, Amazon SageMaker notebook instance or a Cloud9 environment) 4. [AWS CDK](https://aws.amazon.com/cdk/) installed. It can be installed using [npm](https://www.npmjs.com/), see also the [AWS Documentation](https://docs.aws.amazon.com/cdk/v2/guide/getting_started.html). ## Execution This app creates a stack (`car-angle-detection`) which contains an AWS Amplify static website project leverging an AWS CodeCommit repository, a Amazon S3 bucket, an AWS CodeCommit repository that is integrated into an AWS CodePipeline which enables CI/CD driven machine learning (ML) training, this ML training is done in Amazon SageMaker and will automatically deploy an endpoint, this endpoint is used in an AWS Lambda function behind an Amazon API Gateway. This comes together with another AWS Lambda function behind an Amazon API Gateway which can both be connected to the static frontend. The `cdk.json` file tells the CDK Toolkit how to execute your app. This project is set up like a standard Python project. First we will need to create a virtuelenv, stored under a .venv directory. To create the virtualenv it assumes that there is a `python3` executable in your path with access to the `venv` package. But before, let's install AWS CDK. Step 0: Install the AWS CDK usin `npm`: ``` npm install -g aws-cdk ``` Step 1: Create a virtualenv on MacOS / Linux: ``` $ python3 -m venv .venv ``` Step 2: After the init process is complete and the virtualenv is created, you can use the following step to activate your virtualenv. ``` $ source .venv/bin/activate ``` If you are on a Windows platform, activate the virtualenv with: ``` % .venv\Scripts\activate.bat ``` Step 3:Once the virtualenv is activated, install the required dependencies. ``` $ pip install -r requirements.txt ``` Step 4: At this point you can now synthesize the CloudFormation template for this code. **Before you do so, edit your app.py and provide the appropriate and unique name for the bucket.** ``` $ cdk synth ``` Step 5: Also make sure that your account is bootstraped: ``` $ cdk bootstrap ``` Step 6: You can now deploy the CloudFormation template for this code. ``` $ cdk deploy ``` You can explore the source code, contained in the app directory. Further unit tests are included and can be run through: **Before you do so, edit your car_positioning/tests/unit/car_angle_stack_test.py and provide the appropriate and unique bucket name.** Ensure that the stack is deployed from an environment with Docker installed and running at the time of execution. ``` $ pytest ``` To add additional dependencies, for example other CDK libraries, append them to the requirements.txt file and rerun the `pip install -r requirements.txt` command. Step 7: Connect the model end points to AWS Amplify and use it: 1. Clone the application repository that this CDK stack created, named `car-angle-detection-website-repo`. Make sure you are looking for it in the region you used for deployment. 2. Copy the the API Gateway endpoints for each of the deployed Lambdas into the index.html file in the above repository. There are placeholders where the end point needs to be placed. Example: ``` ``` 3. Save the HTML file and push the code change to the remote master/main branch. This will update the HTML file in the deployment. 4. The application is now ready to use. Go to the AWS Amplify endpoint and use the application. ## Useful commands * `cdk ls` list all stacks in the app * `cdk synth` emits the synthesized CloudFormation template * `cdk deploy` deploy this stack to your default AWS account/region * `cdk diff` compare deployed stack with current state * `cdk docs` open CDK documentation Enjoy! ## Authors Contributors names and contact info * [Aamna Najmi] (anajmi@amazon.de) * [Ahmed Mansour] (amnsour@amazon.de) * [David Sauerwein] (dsauerwe@amazon.ch) * [Michael Wallner] (wallnm@amazon.de) * [Srikrishna Chaitanya Konduru] (srikrik@amazon.ch) ## License This project is licensed under the MIT-0 License. Security --------------- See CONTRIBUTING.md for more information. Licensing --------- This code is licensed under the MIT-0 License. It is copyright 2022 Amazon.com, Inc. or its affiliates.
