# Audio event detection STM32 model training
This tutorial shows how to train from scratch or apply transfer learning on an AED model using a custom dataset.
As an example we will demonstrating the workflow on the [ESC-10]("https://github.com/karolpiczak/ESC-50") classification dataset.
## Table of contents
* Prepare Dataset
* Train and Evaluate Model
* Visualize Training Results
## Prepare Dataset
### **1. Download the dataset and extract it**
ESC-10 is distributed as part of a larger dataset, ESC-50. In this tutorial, we will download the ESC-50 dataset, but only use the ESC-10 subset for training, evaluating or performing transfer learning on the models.
Download the latest dataset release from https://github.com/karolpiczak/ESC-50#download
Then, extract the archive to a folder of your choice. The default location expected by the model zoo is the [datasets](datasets/) folder, but this can be configured.
For instructions on how to use a custom dataset, see the appropriate section
### **2. Configure the yaml file**
## **2.0. Using a pre-made yaml file**
The [models](../../models/) directory contains several subfolders, one for each model architecture.
Some of these models need quite different pre-processing, feature extraction and training parameters, and using different ones could lead to wildly varying performance.
**Each of these subdirectories contains a config.yaml file used to train the model**.
**To use these in training, copy them over to the [training](./) folder, and rename them to `user_config.yaml`
**If you want to reproduce the listed performance, we recommend you use these premade .yaml files**
**Performance may be quite different if you use different parameters**
**2.1. General settings:**
Configure the **general** section in **[user_config.yaml](user_config.yaml)** in the following way
- `project_name` - *String*, name of the project.
- `logs_dir` - Path to save tensorboard logs.
- `saved_models_dir` - Path to save the trained model.
**2.2. Loading the dataset:**

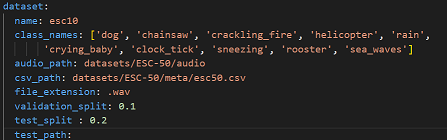

Configure the **dataset** section in **[user_config.yaml](user_config.yaml)** in the following way
where:
- `name` - Dataset name. Use `esc10` for ESC-10, and `custom` for a custom dataset. For instructions on how to use a custom dataset, see the appropriate section
- `class_names` - A list containing the names of the classes to use for training. This can be a subset of all available classes. If left empty, will default to using all available classes.
- `audio_path` - Path to the folder containing the audio clips
- `csv_path` - Path to the .csv file containing the filenames and labels.
- `file_extension` - Extension of the audio files. Will be automatically appended to the end of the filenames contained in the .csv file if necessary when fetching the audio files.
- `validation_split` - Real number between 0 and 1. Proportion of the training set to use for validation. If left empty, defaults to 0.1
- `test_split` - Real number between 0 and 1. Proportion of the dataset to use as test set. If left empty, defaults to 0.2.
- `test_path` - If you want to use a specific subset of data for testing, include a path to the csv file for this subset, in the same format as the one provided in `csv_path`. If this is not empty, `test_split` will be ignored. You will also need to make sure that there is no overlap between this specific test set and the dataset provided in `test_path`. Audio files must be put in the folder given in `audio_path`
**2.3. Temporal domain preprocessing:**
When performing AED, it is customary to perform some preprocessing directly on the input waveform before converting it to a spectrogram.
In our case, we keep it simple, by resampling the input waveform to a target sample rate, clipping it between a minimum and maximum duration, removing silence, and repeating the waveform if it is too short.

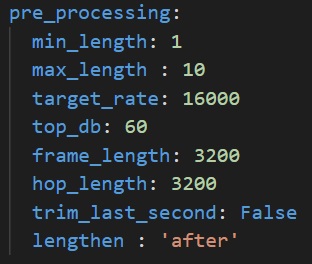

You can fine-tune this behaviour by modifying the **pre_processing** parameters in **[user_config.yaml](user_config.yaml)** in the following way:
- `min_length` - Desired minimum length of the waveform, in seconds
- `max_length` - Desired maximum length of the waveform, in seconds
- `target_rate` - Desired sampling rate. Resulting waveform will be resampled to this rate.
- `top_db` - Decibel threshold for silence removal. Higher means stricter. For example, using `top_db=30` will remove more audio than using `top_db=60`, because in the second case, the average power of the signal in a frame must be below -60dB for it to be removed, instead of -30dB.
- `frame_length` - Length of frames used for silence removal, in number of samples.
- `hop_length` - Hop length used for silence removal, in number of samples.
- `trim_last_second` - Boolean. If True, will cut the waveform to an integer number of seconds. For example, if the resulting waveform would be 4s and 500 ms, this flag will instead cut it to 4s.
- `lengthen` - Valid values : "before" or "after". If set to "before", audio repetition will be performed before silence removal. If set to "after", audio repetition will be performed after.
WARNING : setting this option to "before" may result in the resulting waveform being shorter than `min_length`. Set to "after" if you are unsure.
**2.4. Log-melspectogram computation and patch extraction**
After performing temporal domain preprocessing on the waveform, it is converted to a log-melspectrogram. This spectrogram is then cut up into patches of fixed size, which are then given as input to the neural network.
The patches given to the model will be of shape `n_mels` x `patch_length`.

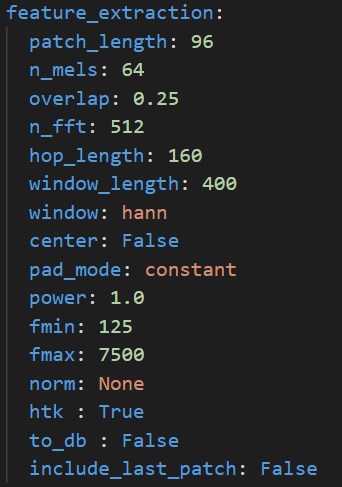

You can fine-tune the behaviour of spectrogram computation and patch extraction by configuring the **feature_extraction** section in **[user_config.yaml](user_config.yaml)**:
- `patch_length` - Number of frames to include in each patch. Patches will be of shape `n_mels` x `patch_length`
- `n_mels` - Number of mel filter bins. Patches will be of shape `n_mels` x `patch_length`
- `overlap` - Real number between 0 and 0.5. Proportion of overlap between patches. Note that the actual overlap will be double this value. For example, if `overlap` is set to 0.25, with `patch_length=40` then patch N will share its first 10 frames will patch N-1, and its last 10 frames with patch N+1, for a total of 20 frames shared with other patches, i.e. half its frames.
- `n_fft` - Size of the FFT, in number of samples
- `hop_length` - Hop length (i.e. number of successive samples) between different frames, in number of samples.
- `window_length` - Size of the window. Set equal to `n_fft` if you want to avoid window padding
- `window` - Window type
- `center` - Boolean. If True, frames are centered, i.e. frame `n` is centered around sample number `n * hop_length`. If False, frames begin at sample number `n * hop_length`
- `pad_mode` - Padding mode used if center is True. If center is False, does nothing.
- `power` - Exponent for the magnitude spectrogram. Set to 1.0 for energy spectrogram, and 2.0 for power spectrogram.
- `fmin` - Minimum frequency used when computing mel filter bins
- `fmax` - Maximum frequency used when computing mel filter bins
- `norm` - Mel filter weights normalization. Set to "slaney" if you are unsure. Some models, like Yamnet, expect no normalization
- `htk` - If true, use the [HTK](https://htk.eng.cam.ac.uk/) formula to compute mel filter weights. Set to "False" if you are unsure. Some models, like Yamnet, expect this to be True.
- `to_db` - If set to True, logmelspectrograms are expressed in dB units. Set to "True" if you are unsure. Some models, like Yamnet expect this to be False.
- `include_last_patch` - If set to False, discards the last patch if it does not contain `patch_length` frames. If true, this patch is returned.
WARNING : Setting this option to True will cause errors when using models with a fixed input size !
## Train and Evaluate Model
### **1. Configure training parameters**
**1.1. Transfer learning : choose a model with pre-trained weights:**
We provide pre-trained models which you can use for transfer learning.
As an example, we will pick a *Yamnet* model, and perform transfer learning on ESC-10.

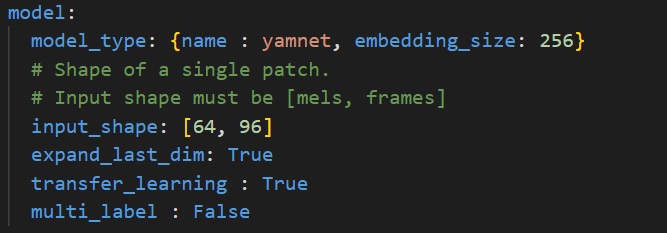

To do so we will need to configure the **model** section in **[user_config.yaml](user_config.yaml)** in the following way :
where:
- `model_type` - A *dictonary* with keys relative to the model topology (see [more](./doc/models.json)). Example for Yamnet : *{name : yamnet, embedding_size=256}*, else for a custom model use *{name : custom}*.
- `input_shape` - A *list of int* *[n_mels, patch_length]* for the input resolution, e.g. *[64, 96]*.
- `expand_last_dim` - *Boolean* Some models expect input of the shape *[n_mels, patch_length, 1]*, often because they are repurposed image classification architectures. Set this to True if that is the case.
If using a MiniResnet, MiniResnetv2 or Yamnet, set this to True.
- `transfer_learning` - *Boolean*, if True, a pretrained model is loaded, its layers are frozen, a classification head is added and trained. If False, the entire network is trained from scratch.
Note that Yamnet can only be used with `transfer_learning=True`
- `multi_label` - *Boolean*. Set to True if you want to perform multilabel classification, i.e. if each sample can belong to more than 1 class at a time.
This is not the case in ESC-10.
NOTE : Currently unsupported, but will be in an upcoming version.
**1.2. Choose a custom model:**
If you want to define and train your custom model, you need set the `model_type` argument to `custom`.

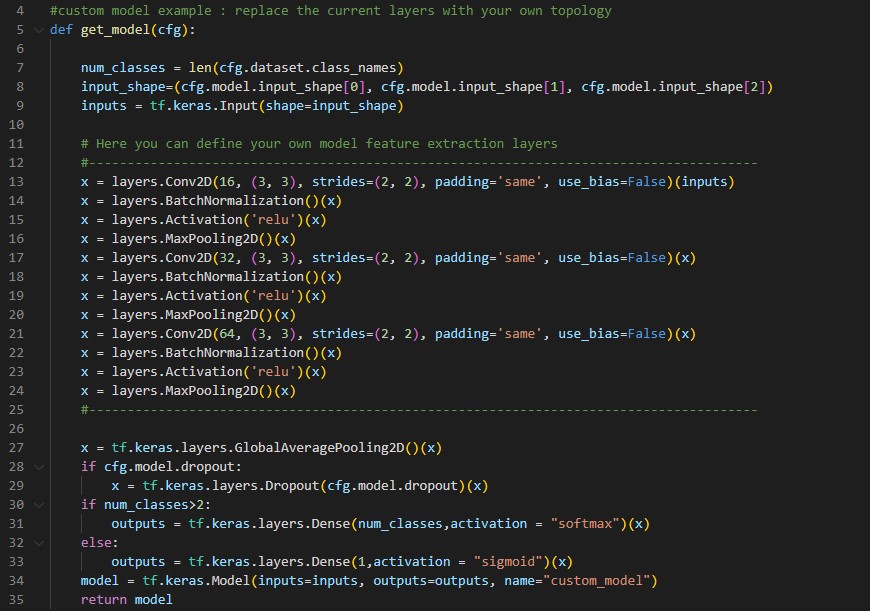

Under [utils](../utils/models/custom_model/custom_model.py), we provide a template `custom_model.py` where you can define the feature extraction layers of your custom model in Keras/Tensorflow. Your topology should be described in the function `get_model(cfg)` as follows:
**1.3. Set training hyperparameters:**
To choose the right hyperparameters for training your model, simply modify the **train_parameters** section in **[user_config.yaml](user_config.yaml)** as the following:
where:
- `batch_size` - *int*. Size of the batches of data, e.g. 64.
- `training_epochs` - *int*. Number of epochs to train the model. You will want to set this to a larger number when training from scratch.
- `optimizer` - One of "Adam", "SGD" or "RMSprop".
- `initial_learning` - A *float* value, e.g. 0.001.
- `patience` - *int*, Number of epochs where the validation accuracy can plateau without early stopping. Specifically, if the validation accuracy has not reached a new maximum in this number of epochs, then training will be stopped.
- `learning_rate_scheduler` - One of "Constant", "ReduceLROnPlateau", "Exponential" or "Cosine".
- `restore_best_weights` - *bool*, set to True to restore the weights with the best validation accuracy at the end of training. If set to False, weights from the last epoch will be kept instead.
**1.4 Configure data augmentation:**
If you want your model's performance to transfer well to real world, real-time inference, it is important to apply data augmentation during training, in order to make your model robust to various perturbations.

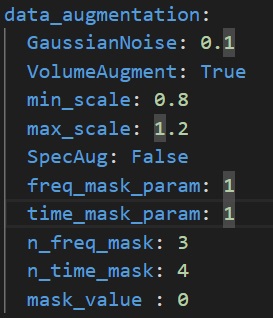

To change data augmentation parameters, configure the **data_augmentation** section in **[user_config.yaml](user_config.yaml)** in the following way :
where :
- `GaussianNoise`: *Float or None or False* : Amplitude of Gaussian noise to add to spectrograms. Set to False or None to disable Gaussian noise addition.
Be careful, as the amplitude of values in your spectrograms can change greatly depending on normalization and whether or not decibel scale is used. Make sure to set this parameter in accordance.
- `VolumeAugment`: *bool*, set to True to enable random volume scaling on spectrograms. Set to False to disable. The random scale is picked for each batch uniformly between min_scale and max_scale
- `min_scale`: *float*, minimum scale for random volume scaling
- `max_scale`: *float*, maximum scale for random volume scaling
- `SpecAug`: *bool*, set to True to enable SpecAugment (https://arxiv.org/abs/1904.08779). SpecAugment randomly masks contiguous columns or rows in a spectrogram. Implementation by MichaelisTrofficus, taken from https://github.com/MichaelisTrofficus/spec_augment
Warning : This can really degrade your model performance if used improperly. When in doubt, set to False.
- `freq_mask_param`: *int*, number of rows to mask in each contiguous block
- `time_mask_param`: *int* , number of columns to mask in each contiguous block
- `n_freq_mask`: *int*, number of contiguous blocks to mask on the frequency axis
- `n_time_mask`: *int*, number of contiguous blocks to mask on the time axis
- `mask_value` : *float*, value to replace masked values with. Be sure to set this properly relative to the scale of values in your spectrogram, unless you want to get terrible performance.
### **2. Configure evaluation parameters**
**2.1. Model Quantization:**
Quantization optimizes your model to be deployed more efficiently on your embedded device by reducing its memory usage(Flash/RAM) and accelerating its inference time, with little degradation in model accuracy.

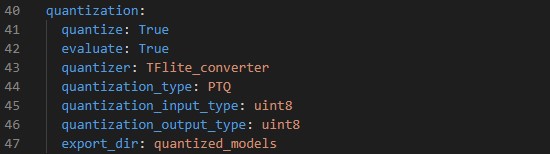

Configure the **quantization** section in **[user_config.yaml](user_config.yaml)** in the following way:
where:
- `quantize` - *Boolean*, if True model will be quantized, else False.
- `evaluate` - *Boolean*, if True evaluate quantized model, else False.
- `quantizer` - *String*, only option is "TFlite_converter" which will convert model trained weights from float to integer values. The quantized model will be saved in TensorFlow Lite format.
- `quantization_type` - *String*, only option is "PTQ",i.e. "Post-Training Quantization".
- `quantization_input_type` - *String*, can be "int8", "uint8" or "float", represents the quantization type for the model input. For audio, should be "int8" or "float" as melspectrograms have negative values
- `quantization_output_type` - *String*, can be "int8", "uint8" or "float", represents the quantization type for the model output.
- `export_dir` - *String*, referres to directory name to save the quantized model.
**2.2. Benchmark your model with STM32Cube.AI:**
CubeAI will allow you to benchmark your model and estimate its footprints for STM32 target devices.
Make Sure to add the path to the stm32ai excutable under **path_to_stm32ai**, else you will need to provide your credentials to use the **Developer Cloud Services**:
where:
- `optimization` - *String*, define the optimization used to generate the C model, options: "*balanced*", "*time*", "*ram*".
- `footprints_on_target` - Specify board name to evaluate the model inference time on real stm32 target, e.g. **'B-U585I-IOT02A'** (see [more](./doc/boards.json)), else keep **False**.
For example, specify **'B-U585I-IOT02A'** to use **Developer Cloud Services** to benchmark model and generate C code, else keep **False** (i.e. only local download of **STM32Cube.AI** will be used to get model footprints and C code w/o inference time)
- `path_to_stm32ai` - *Path* to stm32ai executable file.
### **3. Train your model**
Run the following command:
```bash
python train.py
```
## Visualize Training Results
### **1. Saved results**
All training and evaluation artificats are saved under the current output simulation directory **"outputs/{run_time}"**.

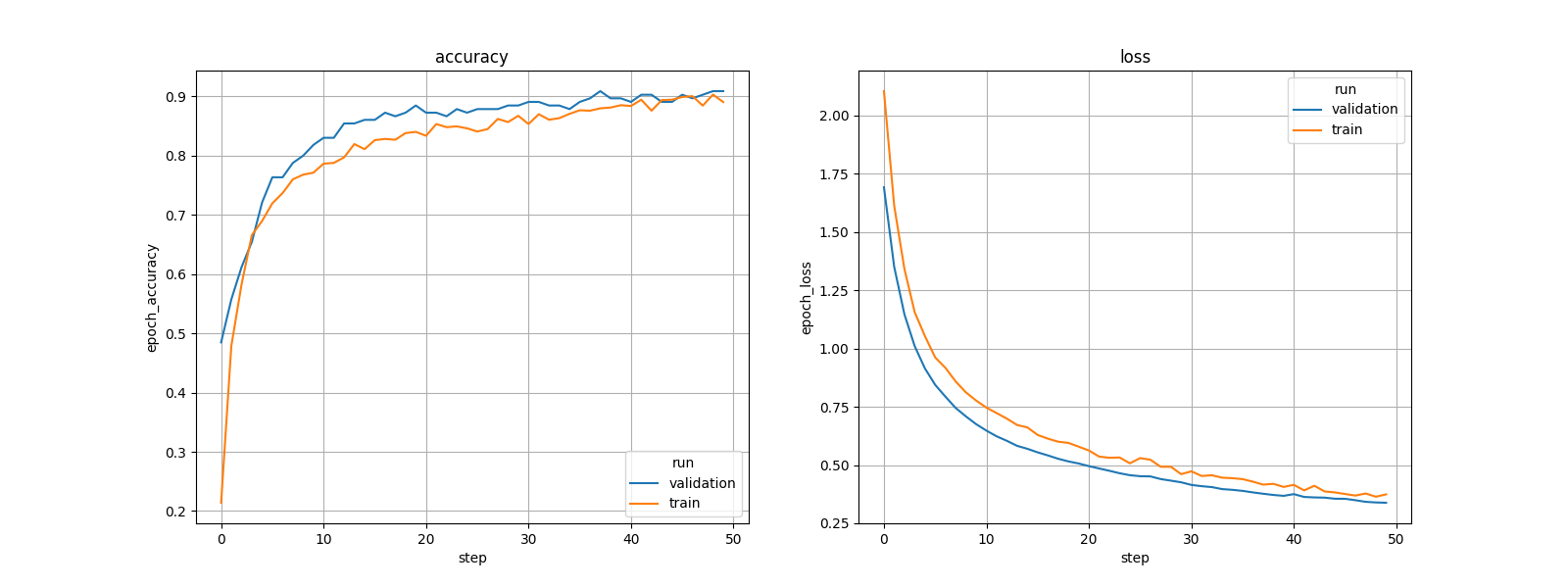

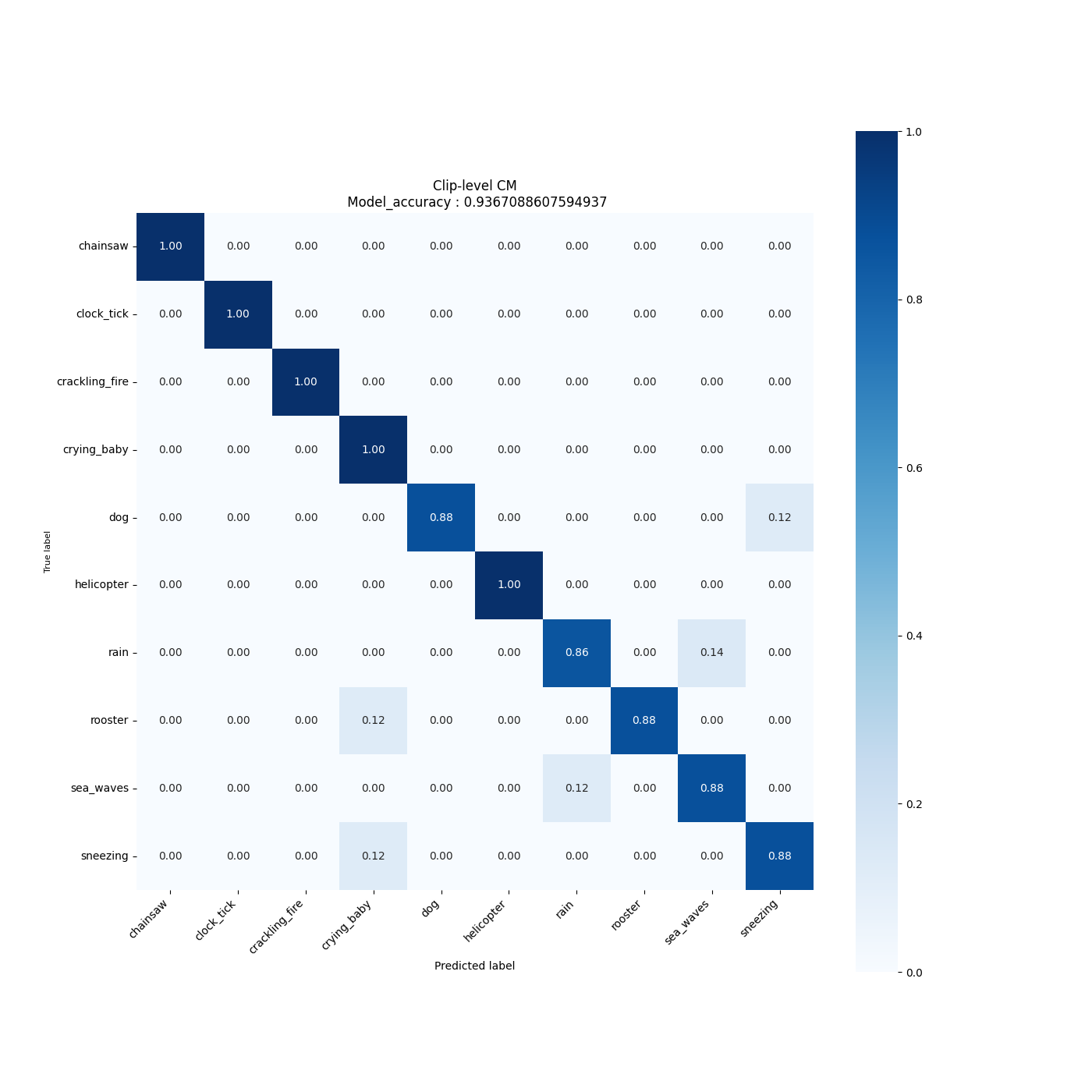

For example, you can retrieve the plots of the accuracy/loss curves, as well as the confusion matrix generated after evaluating the float/quantized model on the test set as follows:
### **2. Run Tensorboard**
To visualize the training curves logged by tensorboard, go to **"outputs/{run_time}"** and run the following command:
```bash
tensorboard --logdir logs
```
And open the URL `http://localhost:6006` in your brower.
### **3. Run MLFlow**
MLflow is an API for logging parameters, code versions, metrics, and artifacts while running machine learning code and for visualizing results.
To view and examine the results of multiple trainings, you can simply access the MLFlow Webapp by running the following command:
```bash
mlflow ui
```
And open the given IP adress in your browser.
## **Using a custom dataset**
To use a custom dataset, you must format it in a similar way to ESC-10.
This means a few things.
- Have all the audio files in the same extension (for example, no mixing .wav and .flac), and in the same folder. Provide a path to this folder in the `audio_path` parameter of the config file
- Have a csv file with at least two columns : `filename` and `category`. The `filename` column must contain the filename of the audio files, and the `category` column the labels in string format. For multi-label datasets, the `category` column should have the labels as a list of strings. Provide a path to this csv file in the `csv_path` parameter of the config file.
- Then all you have left to do is to change the `name` parameter- in the config file to `custom`.
