This Quick Start reference deployment guide walks you through the steps for deploying Dell Boomi Atom on the AWS Cloud. It does not require deep knowledge of AWS or Linux system administration.

This Quick Start is for users who are looking for an integration platform as a service (iPaaS) solution hosted on the AWS Cloud. With it, you can deploy Dell Boomi Atom on AWS and administer it through the Dell Boomi Atom AtomSphere platform.

Dell Boomi Atom is a a low-code iPaaS with pre-built connectors to integrate cloud and legacy data and applications. With Boomi integration, you can adopt AWS services quickly while continuing to operate in an environment that includes on-premises data.

You are responsible for the cost of the AWS services and any paid third-party licenses used while running this Quick Start. There is no additional cost for using the Quick Start.

The AWS CloudFormation templates for Quick Starts include configuration parameters that you can customize. Some of the settings, such as the instance type, affect the cost of deployment. For cost estimates, see the pricing pages for each AWS service you use. Prices are subject to change.

This Quick Start requires a Dell Boomi account. The Dell Boomi account you use to deploy this Quick Start will determine the licensing model that applies. Licensing costs are managed by Dell Boomi, and Dell Boomi applies standard connector metering charges to workloads using a Dell Boomi account. However, you can also use this Quick Start to deploy a Dell Boomi Atom server that will run trial or training workloads.

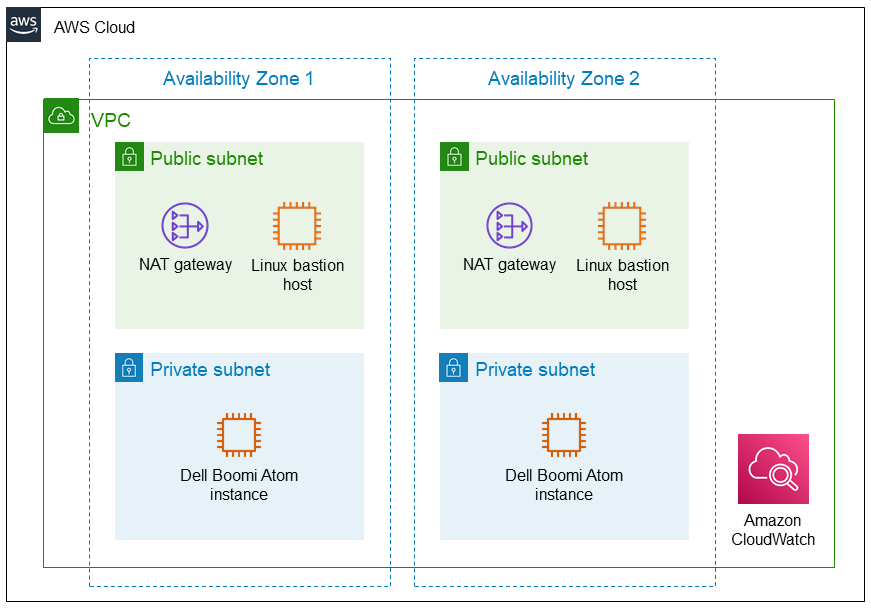

Deploying this Quick Start into a new virtual private cloud (VPC) with default parameters builds the following Dell Boomi Atom environment in the AWS Cloud.

As shown in Figure 1, the Quick Start sets up the following:

*The template that deploys the Quick Start into an existing VPC skips the components marked by asterisks and prompts you for your existing VPC configuration.

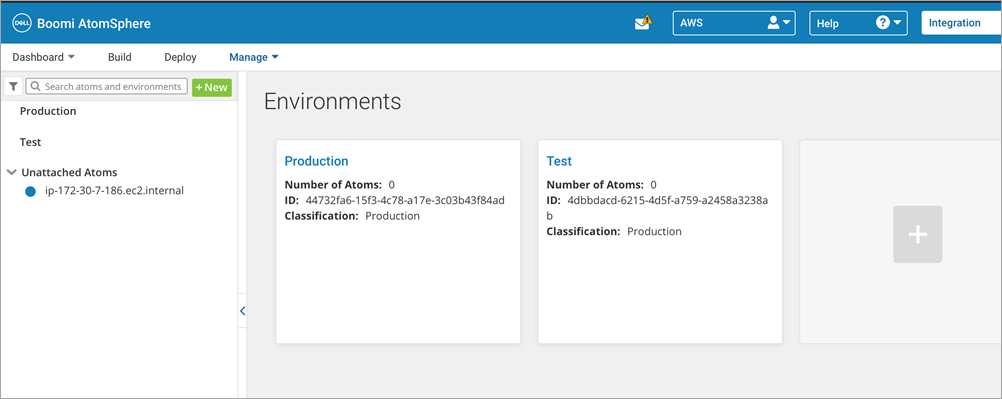

To verify the deployment of the Atom in your Dell Boomi account, first log in to AtomSphere. On the Manage menu, select Atom Management. The new Atom deployed by this Quick Start is displayed under Unattached Atoms.

The Atom that is deployed by this Quick Start can be managed from the Dell Boomi AtomSphere dashboard. From the AtomSphere dashboard, you can attach the Atom to environments and deploy processes to it.

In Figure 4, the Atom server is identified by the Domain Name System (DNS) name ip-172-30-7.186.ec2.internal. The account contains environments, one labeled Production and the other labeled Test.

This Quick Start deploys a bastion host and a Dell Boomi Atom server into an AWS VPC. The bastion host is the only means of accessing the Atom at a command line level. The Atom is deployed into a private subnet and cannot be reached through the internet. It communicates through a NAT gateway for updates and patches.

Monitoring the CPU, network, and Amazon Elastic Block Store (Amazon EBS) performance of your Atom is done using CloudWatch metrics.

CPU and network performance is measured in utilization, network in and out, network packets in and out, and system status checks.

Amazon EBS volume performance is measured in read and write throughput, average read and write size, read and write bandwidth, read and write latency, and volume idle time.

Further monitoring of disk space and inode consumption must be performed at the command line level of the EC2 instance using the df -h and df -i Linux commands.

When deploying this Quick Start, you can specify a Dell Boomi AtomSphere username and password or a valid Boomi installer token, depending on how you want to authenticate the Atom. To generate an installer token, do the following:

Q. I encountered a CREATE_FAILED error when I launched the Quick Start.

A. If AWS CloudFormation fails to create the stack, relaunch the template with Rollback on failure set to Disabled. This setting is under Advanced in the AWS CloudFormation console on the Configure stack options page. With this setting, the stack’s state is retained, and you can troubleshoot the issue.

For more information, see Troubleshooting AWS CloudFormation.

Q. I encountered a size-limitation error when I deployed the AWS CloudFormation templates.

A. Launch the Quick Start templates from the links in this guide or from another S3 bucket. If you deploy the templates from a local copy on your computer or from a location other than an S3 bucket, you might encounter template-size limitations. For more information, see AWS CloudFormation quotas.

To post feedback, submit feature ideas, or report bugs, use the Issues section of the GitHub repository for this Quick Start. To submit code, see the Quick Start Contributor’s Guide.

See the AWS Quick Start home page.

Visit our GitHub repository to download the templates and scripts for this Quick Start, to post your comments, and to share your customizations with others.
