1. From AWS console, take **note of the region you are launching your resource.** 2. Click on **Launch Instance**. 3. Click **Select** on any AMI ( for the purpose of this workshop whichever AMI you select does not matter, as long as the instance can successfully start ). 4. Select `t2.nano` EC2 instance ( Let's be frugal ) then click **Review and Launch**. 5. Click on **Edit Tags**. 6. Click **Add Tag** and place `Name` under Key and type in `ta-test-instance` as the Value. 5. Click **Review and Launch** once again. 6. Click **Launch**. 7. Select `Proceed without a key pair` and tick the "I acknowledge that I will not be able to connect to this instance unless I already know the password built into this AMI." 8. Click **Launch Instances** More details on how to launch EC2 instance [Click Here](https://docs.aws.amazon.com/AWSEC2/latest/UserGuide/launching-instance.html "Create EC2 Instance")

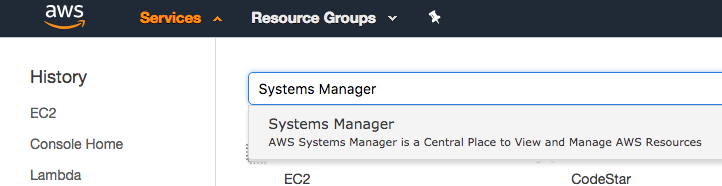

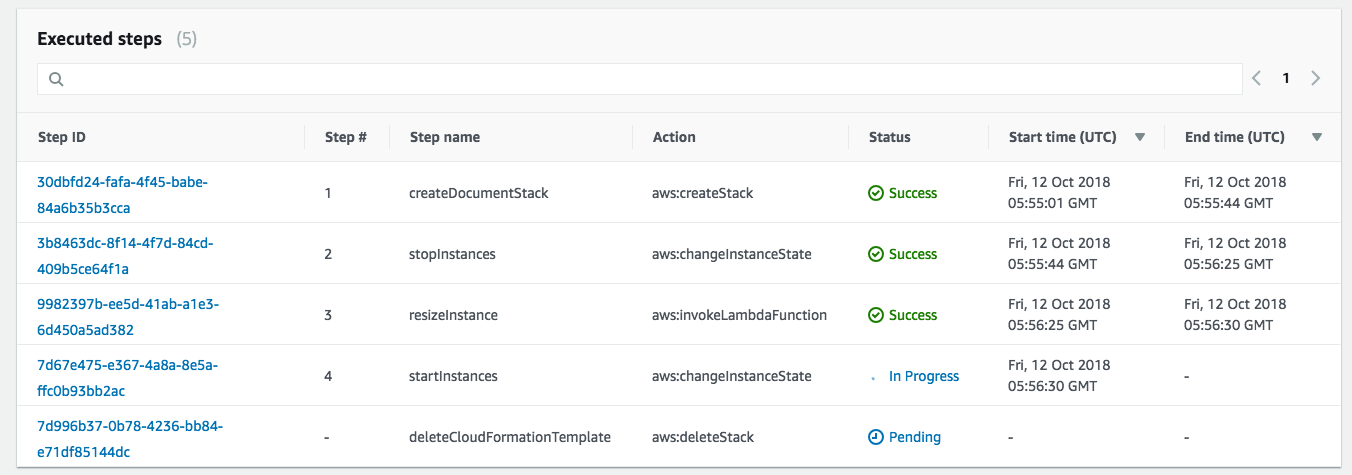

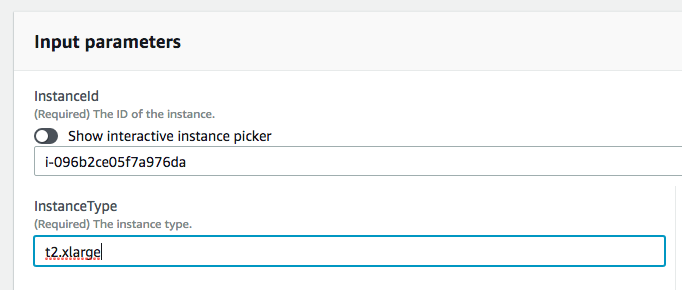

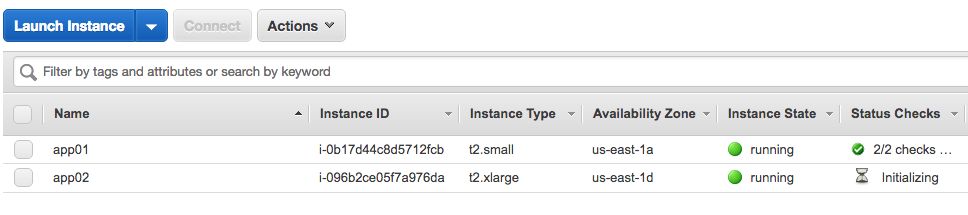

1. From AWS console make sure to select the same region as the launched EC2 instance in step 0. 2. Then Click on **Services** and type in `Systems Manager` in the search bar, then click on the result.  3. Click on **Automation** on the left menu. 3. Click on **Execute automation**. 4. Search for `AWS-ResizeInstance`using the search bar. 5. Select `AWS-ResizeInstance` then click **Next** 6. Under Input parameters enter the Instance Id of the launched EC2 instance in step 0 on `Instance Id` field e.g: i-2daaf3fafads3 7. Enter the Instance type that you would like this instance to resize to under `Instance type` field e.g: `t2.micro` 8. Click on **Execute automation**.  9. Watch the automation progressing and notice all the steps Systems Manager has taken for you.  7. Then watch the EC2 instance being stopped, resized, then start again, without human intervention.
_**Note :**_
*In this step we will be creating an SNS topic to allow Automation Document to send the approval request. Please ensure to create the SNS Topic below in the same region where you deployed the Automation Document and your instance on step 0. Please also take note of the region name for the remaining of the workshop.*
**Setting up the SNS Topic**
1. From AWS console make sure to select the same region as the launched EC2 instance in step 0.
2. Click **Services** and type `SNS` then click on the result.
3. From here click on Topics, then **Create topic**.
4. Type in `ta-resize-approval-topic` as Topic Name and `taresize` as Display Name.
5. Click **Create Topic** ( Note the SNS topic ARN, we will need this later ) e.g: arn:aws:sns:ap-southeast-2:0227823432442:ta-resize-approval-topic
6. Click on Subscriptions, then **Create subscription**, select Email for protocol and type in your email address as the endpoint.
5. Click **Create subscription**.
6. You should receive an email from SNS service to the email address specified.
7. Click on the **Confirm Subscription** in the email body.
8. From this point onwards any notification that is published to this topic, you will receive the notification in your email.
**Creating the Custom Automation Document**
1. From AWS console make sure to select the same region as the launched EC2 instance in step 0.
2. Then Click on **Services** and type in `Systems Manager` in the search bar, then click on the result.
3. Click on **Documents** on the left menu.
4. Click on **Create automation**.
5. Type `Custom-ResizeInstanceApproval` in the Name field.
6. Click on **Editor** to open the document editor.
7. Click **Edit** and select **OK** to edit the document.
8. Copy and paste the YAML below into the Content field, replacing all existing text.
9. Replace the `
1. From AWS console make sure to select the us-east-1 region. 2. Click on Services and type in IAM to navigate to the IAM Management Console. 3. To create a custom role for the Lambda function, click on Roles, then Create role. 4. Select Lambda as the service that will be using this Role. 5. Click Create Policy to define a custom policy. 6. Select the JSON tab and paste the policy below: ``` { "Version": "2012-10-17", "Statement": [ { "Effect": "Allow", "Action": [ "logs:CreateLogStream", "logs:CreateLogGroup", "logs:PutLogEvents" ], "Resource": [ "arn:aws:logs:*:*:*" ] }, { "Effect": "Allow", "Action": [ "sns:Publish" ], "Resource": [ "*" ] }, { "Effect": "Allow", "Action": [ "iam:PassRole", "iam:CreateRole", "iam:DeleteRolePolicy", "iam:PutRolePolicy", "iam:GetRole", "iam:DeleteRole" ], "Resource": [ "*" ] }, { "Effect": "Allow", "Action": [ "ssm:StartAutomationExecution", "ssm:StopAutomationExecution", "ssm:GetAutomationExecution" ], "Resource": [ "*" ] }, { "Effect": "Allow", "Action": [ "ec2:DescribeInstances", "ec2:DescribeInstanceStatus", "ec2:StartInstances", "ec2:ModifyInstanceAttribute", "ec2:StopInstances" ], "Resource": "*" }, { "Effect": "Allow", "Action": [ "lambda:CreateFunction", "lambda:InvokeFunction", "lambda:AddPermission", "lambda:DeleteFunction", "lambda:GetFunction" ], "Resource": "*" }, { "Effect": "Allow", "Action": [ "cloudformation:CreateStack", "cloudformation:DeleteStack", "cloudformation:DescribeStacks" ], "Resource": "*" } ] } ``` 7. Click Review policy 8. Enter a name: "ta-resize-lambda-policy" and click Create policy. 9. Go back to the original IAM tab, click the refresh button and search for ta-resize-lambda-policy. 10. Select this policy and click Next: Tags. 11. Tag the policy as needed, then click Next:Review. 12. Enter a Role name "ta-resize-lambda-role" and then click Create role. 13. From the AWS Management console, click on Services and type in Lambda in the search bar and press enter.  14. Click on **Create Function** 15. Type in your function **Name** as `ta-resize-lambda`. 16. Set Runtime to **Python3.6** 17. Select Use an existing role and select the role created in step 12 and click Create Function. 18. Copy Paste below Lambda Function Code.  ``` import json import boto3 import os ## EC2 Instance Table to decide which instance type to resize i_list = { "t2":["nano","micro","small","medium","large","xlarge","2xlarge"], "t3":["nano","micro","small","medium","large","xlarge","2xlarge"], "m5d":["large","xlarge","2xlarge","4xlarge","12xlarge","24xlarge"], "m5":["large","xlarge","2xlarge","4xlarge","12xlarge","24xlarge"], "m4":["large","xlarge","2xlarge","4xlarge","10xlarge","16xlarge"], "c5d":["large","xlarge","2xlarge","4xlarge","9xlarge","18xlarge"], "c5":["large","xlarge","2xlarge","4xlarge","9xlarge","18xlarge"], "c4":["large","xlarge","2xlarge","4xlarge","8xlarge"], "f1":["2xlarge","16xlarge"], "g3":["4xlarge","8xlarge","16xlarge"], "g2":["2xlarge","8xlarge"], "p2":["xlarge","8xlarge","16xlarge"], "p3":["2xlarge","8xlarge","16xlarge"], "r5d":["large","xlarge","2xlarge","4xlarge","12xlarge","24xlarge"], "r5":["large","xlarge","2xlarge","4xlarge","12xlarge","24xlarge"], "r4":["large","xlarge","2xlarge","4xlarge","8xlarge","16xlarge"], "x1":["16xlarge","32xlarge"], "x1e":["xlarge","2xlarge","4xlarge","8xlarge","16xlarge","32xlarge"], "z1d":["large","xlarge","2xlarge","3xlarge","6xlarge","12xlarge"], "d2":["xlarge","2xlarge","4xlarge","8xlarge"], "i2":["xlarge","2xlarge","4xlarge","8xlarge"], "h1":["2xlarge","4xlarge","8xlarge","16xlarge"], "i3":["large","xlarge","2xlarge","4xlarge","8xlarge","16xlarge"] } ## Function to decide new EC2 instance type ## This function will choose a higher instance type in the same family def getResize(IType): I = IType.split(".") Idx = i_list[I[0]].index(I[1]) leng = len(i_list[I[0]]) - 1 if Idx < leng: NIdx = Idx + 1 RType = I[0] + "." + i_list[I[0]][NIdx] else: RType = "none" return(RType) ## Function to find instance type from instance id. def getIType(IID,ec2): resp = ec2.describe_instances(InstanceIds=[IID]) RType = resp['Reservations'][0]['Instances'][0]['InstanceType'] return(RType) ## Lambda Handler Function def lambda_handler(event, context): print(json.dumps(event)) RARN = event['detail']['resource_id'].split(':') REGION = RARN[3] ssm = boto3.client('ssm', region_name=REGION) ec2 = boto3.client('ec2', region_name=REGION) # Find Instance ID, check the type and decide which is the next instance type. IID = event['detail']['check-item-detail']['Instance ID'] IType = getIType(IID,ec2) RType = getResize(IType) # Execute Automation Document of ResizeAutoDocument Environment variable. # Execute the Automation Document if RType != "none": x = ssm.start_automation_execution( DocumentName = os.environ['ResizeAutoDocument'], Parameters= { 'InstanceId': [IID], 'InstanceType': [RType] } ) print(json.dumps(x)) print("Executing Resize") else: print("No Higher Instance Found, Please Review other Instance Family") return(event) ``` 19. Under Environment Variable, create environment variables with key called **ResizeAutoDocument** and the name of the Automation Document created in step 2 `Custom-ResizeInstanceApproval` as the value.  20. Set the function timeout to 30 seconds or more. 21. Click **Save** **Creating the Amazon EventBridge Rule for Trusted Advisor** 1. From the AWS Management console make sure to select the us-east-1 region. 2. From the AWS Management console, click on Services and type in EventBridge in the search bar and press enter. 3. Click on Create rule. 4. Enter ta-highec2util-events in the Name field. 5. Under Define pattern, select **Event pattern** 6. Select **Custom pattern** and paste the following pattern: ``` { "detail-type": [ "Trusted Advisor Check Item Refresh Notification" ], "source": [ "aws.trustedadvisor" ], "detail": { "check-name": [ "High Utilization Amazon EC2 Instances" ], "status": [ "WARN" ] } } ``` 7. Under Select targets, choose Lambda function and select the function you created above: `ta-resize-lambda`. 8. Click **Create** From this point, Lambda and EventBridge are ready to receive events from Trusted Advisor and kick off the EC2 Resize process, so let's test it.
In this step we will simulate our automation by invoking the Lambda function through the test Event. We will create a test event in lambda function and pass on a mock Trusted Advisor payload to invoke our automation process.
1. From AWS console make sure to select the us-east-1 region.

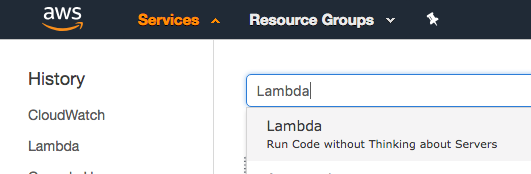

2. From AWS console, click on Services and type in Lambda in the search bar and press enter.
3. Using the search bar locate the Lambda function you created in this step `ta-resize-lambda`.
4. Click on the function name.
5. Click on **Test** and select Create a new test event.
6. Under Event name field enter `tahighec2utiltestevent`.
7. In the body of the event, copy and paste below content and replace `
In this step we test our automation by creating a mock event. We will create another EventBridge rule with `awsmock.trustedadvisor` as the source.
We must use awsmock as the source as using "aws." is not permitted for custom events due to security and integrity reasons.
1. From AWS console, click on Services and type in EventBridge in the search bar and press enter.
2. Click on **Rules**
3. Click **Create rule**
4. Enter ta-highec2util-events in the Name field.
5. Under Define pattern, select **Event pattern**
6. Select **Custom pattern** and paste the following pattern:
```
{
"detail-type": [
"Trusted Advisor Check Item Refresh Notification"
],
"source": [
"awsmock.trustedadvisor"
],
"detail": {
"check-name": [
"High Utilization Amazon EC2 Instances"
],
"status": [
"WARN"
]
}
}
```
7. Under Select targets, choose Lambda Function and select the Lambda function you created in step 3.
8. Keep everything else default and click Create.
9. Create a text file and name it **mockpayload.json**
10. Copy and paste the content below, being sure to replace `
1. Deploy CloudFormation stack using template `ta-automation-highutil-ec2.yml` in the us-east-1 region. 2. Refer here for instructions on how to deploy Stack [Create Stack](https://docs.aws.amazon.com/AWSCloudFormation/latest/UserGuide/cfn-console-create-stack.html "Create Stack"). 3. If you are automating instance resizing outside of **us-east-1**, read the note above and fill in the AutomationDocument name you enterd in the **ResizeAutomationApprovalDocument** parameter. If you leave them blank the automation will only work in **us-east-1**
