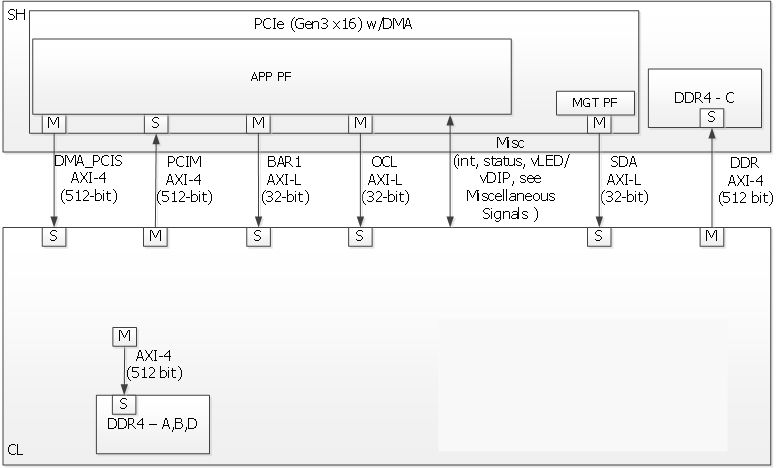

# AWS Shell Interface Specification # Table of Contents: 1. [Overview](#overview) 1a. [Architecture and Version](#arch_ver) 1b. [Conventions](#conventions) 2. [Shell Interfaces](#ShellInterfaces) 3. [External Interfaces](#external_interfaces_implemented_in_cl) 3a. [EC2 Instance view of FPGA PCIe](#pciPresentation) * [Management PF](#management_pf) * [Application PF](#application_pf) 3b. [DDR4 DRAM Interfaces](#ddr) 3c. [DMA](#dma) 4. [Interfaces between Shell and CL](#interfaces_between_shell_and_cl) 4a. [CL/Shell AXI Interfaces](#cl_shell_axi_interfaces) 4b. [Clocks and Resets](#ClocksNReset) 4c. [DDR4 AXI](#ddr4axi) 4d. [PCIS Interface](#pcis_interface) 4e. [PCIM Interface](#pcim_interface) 4f. [AXI-Lite interfaces for register access](#axi_lite_interfaces_for_register_access) 4g. [Interrupts](#interrupts) 4h. [Miscellanous Interfaces(vLED, vDIP..)](#misc) 5. [Implementation Tips](#impl_tips) 5a. [Multi-SLR FPGA](#impl_tips_slr) 5b. [Logic Levels](#impl_tips_logic_levels) 5c. [Reset](#impl_tips_reset) 5d. [Pipeline Registers](#impl_tips_pipeline) 5e. [Vivado Analysis](#impl_tips_vivado) # Overview With Amazon EC2 FPGA instances, each FPGA is divided into two partitions: - Shell (SH) – AWS platform logic implementing the FPGA external peripherals, PCIe, DRAM, DMA, and Interrupts. - Custom Logic (CL) – Custom acceleration logic created by an FPGA Developer. At the end of the development process, combining the Shell and CL creates an Amazon FPGA Image (AFI) that can be loaded onto the Amazon EC2 FPGA Instances. This document specifies the hardware interface and functional behavior between the SH and the CL. ## Architecture and Version This specification applies to Xilinx Virtex Ultrascale Plus platform available on EC2 F1, each update of the Shell is tagged with a revision number. Note while AWS tries to keep the revision constant, sometimes it is necessary to update the revision due to discovered issues or added functionality. The HDK release includes the latest Shell version under `/hdk/common/shell_latest` Starting from F1.X.1.4, The shell is reconfigurable, allowing, in most cases, developers to select which shell version to create the AFI with. Going forward, new shell versions will NOT require updated CL implementation and regenerating the AFI (still a requirement with F1.X.1.4 shell.) ## Conventions **CL –** Custom Logic: the Logic to be provided by the developer and integrated with AWS Shell. **DW –** Doubleword: referring to 4-byte (32-bit) data size. [**AXI-4** ARM Advanced eXtensible Interface.](https://developer.arm.com/architectures/system-architectures/amba/amba-4) [**AXI-4 Stream –** ARM Advanced eXtensible Stream Interface.](https://developer.arm.com/architectures/system-architectures/amba/amba-4) **M –** Typically refers to the Master side of an AXI bus. **S –** Typical refers to the Slave side of AXI bus. # Shell Interfaces The following diagram and table summarize the various interfaces between the Shell and CL as defined in [cl_ports.vh](../common/shell_v04261818/design/interfaces/cl_ports.vh). ![alt tag](./images/AWS_Shell_CL_overview.jpg) | Interface | Description | |:-------------|:-----------| | Clocks and Resets | There are multiple clocks and resets provided by the Shell to the CL. Refer to the [Clocks and Resets](#clocks-and-reset) section for more information. | | DDR4 | The master interface to the DDR4 Controllers utilizes an AXI-4 interface. Refer to the [DDR4 AXI Interface](#ddr4axi) section for more information. | | DMA_PCIS | The PCIe Slave (PCIS) Interface is an AXI-4 interface used for Inbound PCIe transactions. Refer to the [PCIS Interface](#pcis_interface) section for more information. | | PCIM | The PCIe Master (PCIM) Interface is an AXI-4 interface used for Outbound PCIe transactions. Refer to the [PCIM Interface](#pcim_interface) section for more information. | | SDA | The SDA Interface is an AXI-Lite interface associated with MgmtPF and BAR4. Please refer to the [AXI-Lite Interfaces](#axi_lite_interfaces_for_register_access) for more information. | | OCL | The OCL Interface is an AXI-Lite interface associated with AppPF and BAR0. Please refer to the [AXI-Lite Interfaces](#axi_lite_interfaces_for_register_access) for more information. | | BAR1| The BAR1 Interface is an AXI-Lite interface associated with AppPF and BAR1. Please refer to the [AXI-Lite Interfaces](#axi_lite_interfaces_for_register_access) for more information. | | Interrupts | There are 16 user interrupts available. Refer to the [Interrupts](#interrupts) section for more information. | | Miscellaneous | There are various generic signals, such as ID's, status, counters, etc., between the Shell and CL that are described in the [Miscellaneous Signals](#miscellaneous-signals) section. | # External F1 FPGA Interfaces The F1 FPGA platform includes the following external interfaces: - One x16 PCI Express 3.0 Interface. - Four DDR4 RDIMM interfaces, each interface is 72-bit wide (including ECC). ## FPGA PCIe Representation to EC2 Instance There are two PCIe Physical Functions (PFs) presented to the F1 instance: - Management PF – The Management PF provides access to various control functions like Virtual-LED, Virtual-DIPSwitch, [Virtual JTAG](./Virtual_JTAG_XVC.md), FPGA metrics, and AFI management (load, clear, etc...). - Application PF (AppPF)– The AppPF is used for CL specific functionality. Please refer to [PCI Address map](./AWS_Fpga_Pcie_Memory_Map.md) for a more detailed view of the address map. ### Management PF (MgmtPF) The Management PF details are provided for reference to help understanding the PCIe mapping from an F1 instance. The Management PF exposes: a) Amazon’s specific and fixed PCIe VendorID (0x1D0F) and DeviceID (0x1041). b) Three BARs: - BAR0 - 16KiB - BAR2 - 16KiB - BAR4 - 4MiB c) No BusMaster support. d) A range of 32-bit addressable registers. The Management PF is persistent throughout the lifetime of the instance, and it will not be reset or cleared (even during the AFI Load/Clear process). ### Application PF (AppPF) The Application PF exposes: a) PCIe BAR0 as a 32-bit non-prefetchable BAR sized as 32MiB. This BAR maps to the the OCL AXI-Lite interface. b) PCIe BAR1 as a 32-bit non-prefetchable BAR sized as 2MiB. This BAR maps to the the BAR1 AXI-Lite interface. c) PCIe BAR2 as a 64-bit prefetchable BAR sized as 64KiB. This BAR is not CL visible. This BAR maps to the MSI-X tables and XDMA (if enabled). d) PCIe BAR4 as a 64-bit prefetchable BAR sized as 128GiB. This BAR may be used to map the entire External/Internal memory space to the instance address space if desired, through `mmap()` type calls or use `fpga_pci_lib` APIs. e) BusMaster capability to allow the CL to master transactions towards the instance memory. f) CL’s specific PCIe VendorID, DeviceID, VendorSystemID and SubsystemID as registered through `aws ec2 fpgaImageCreate` The Developer can write drivers for the AppPF or leverage the reference driver provided in the SDK. The PCIe interface connecting the FPGA to the instance is in the Shell, and the CL can access it through two AXI-4 interfaces: - [PCI Slave (PCIS)](#pcis_interface) - [PCI Master (PCIM)](#pcim_interface) ## DDR4 DRAM One of the four DRAM interface controllers is implemented in the Shell, and three are implemented in the CL. This allows for optimized resource utilization of the FPGA (allowing higher utilization for the CL place and route region to maximize usable FPGA resources). For those interfaces, the designs and the constraints are provided by AWS and must be instantiated in the CL (by instantiating `sh_ddr.sv` in the CL design). There are four DRAM interfaces labeled A, B, C, and D. Interfaces A, B, and D are in the CL while interface C is implemented in the Shell. The sh_ddr design block, sh_ddr.sv, instantiates the three DRAM interfaces in the CL (A, B, D). For DRAM interface controllers that are implemented in the CL, the AXI-4 interfaces do not connect into the Shell, but connect locally inside the CL to the AWS provided blocks. Refer to the [DDR4 AXI section](#ddr4axi) for more information about these interfaces. **NOTE:** Even if no DDR4 controllers are desired in the CL, the `sh_ddr.sv` block **must** be instantiated in the CL (parameters are used to remove DDR controllers). **WARNING** If the CL does not instantiate the `sh_ddr.sv` block, it will result in implementation errors. Additionally, if the DDR C controller that's instantiated in the Shell is not desired, then the `cl_sh_ddr_rready` can be tied-off to `1'b0`. There are three parameters (all default to '1') that define which DDR controllers are implemented: - DDR_A_PRESENT - DDR_B_PRESENT - DDR_D_PRESENT These parameters are used to control which DDR controllers are impemented in the CL design. An example instantiation (includes DDR_A and DDR_B, excludes DDR_D): ``` sh_ddr #(.DDR_A_PRESENT(1), .DDR_B_PRESENT(1), .DDR_D_PRESENT(0)) SH_DDR ( .clk(clk), ... ``` ## DMA There is an integrated DMA controller inside the Shell (Xilinx DMA), which writes/reads data to/from the CL via the sh_cl_pcis_dma bus. Because of the shared DMA/PCIS interface, this maps to the same address space exposed by the AppPF BAR4 address. Drivers and example software are provided, please refer to the example design [CL_DRAM_DMA Example](../cl/examples/cl_dram_dma/README.md). # Interfaces between Shell and CL ## CL/Shell AXI Interfaces (AXI-4 and AXI-Lite) All interfaces except the inter-FPGA links use the AXI-4 or AXI-Lite protocol. The AXI-L buses are for register access use cases, and can access lower speed control interfaces that use the AXI-Lite protocol. For bulk data transfer, wide AXI-4 buses are used. AXI-4 on the CL/Shell interfaces have the following restrictions: - AxBURST – Only INCR burst is supported. - AxLOCK – Lock is not supported. - AxCACHE – Memory type is not supported. - AxPROT – Protection type is not supported. - AxQOS – Quality of Service is not supported. - AxREGION – Region identifier is not supported. These signals are not included on the AXI-4 interfaces of the shell. If connecting to a fabric or component that supports these signals, these constant vaules should be used: | Signal | Value | |:-------------|:-----------| |AxBURST[1:0] | 0b01 | |AxLOCK[1:0] | 0b00 | |AxCACHE[3:0] | 0b000x (bit 0 is Bufferable bit and may be 0 or 1) | |AxPROT[2:0] | 0b000 | |AxQOS[3:0] | 0b0000 | |AxREGION[3:0] | 0b0000 | ## Clocks and Reset ### Clocks There are multiple clocks provided by the Shell to the CL, grouped into 3 groups marked \_a, \_b and \_c: - clk_main_a0 - clk_extra_a1 - clk_extra_a2 - clk_extra_a3 - clk_extra_b0 - clk_extra_b1 - clk_extra_c0 - clk_extra_c1 **clk_main_a0** is the main clock. All interfaces between the CL and SH are synchronous to clk_main_a0, and must be used by the CL. The clocks within each group are generated from a common VCO/PLL, which restrict what combinations of frequencies are allowed within a group. The maximum frequency on clk_main_a0 is 250MHz. Clocks within a group are phase aligned. **NOTE**: Even though clocks within a group are phase aligned, treating them asynchronous generally allows for higher individual frequencies and easier timing closure. **NOTE**: The Developer must **NOT** assume frequency lock or alignment between clocks from different groups, even if they are set for same frequencies. ### Defining Clock frequencies by Developer There Developer can select among a set of available frequencies, provided in the [clock recipe table](./clock_recipes.csv). The recipe names are called Ax, By, Cz for group A recipe x, group B recipe y and group C recipe z respectively. ### Reset The shell provides an active_low reset signal synchronous to clk_main_a0: rst_main_n. This is an active low reset signal, and is asserted while an AFI is being loaded. The reset signal is de-asserted after the AFI load is complete and the clocks are stable. ## DDR4 AXI Each of the four DDR4 Controllers has an AXI-4 interface with a 512 bit data bus. The AXI-4 interfaces for the three DDR4 Controllers instantiated in the CL (`sh_ddr.sv`) are connected inside of the CL. However, for the DDR-4 controller that is instantiated in the Shell, DDRC, there is an AXI-4 interface between the Shell and CL. Each DRAM interface is accessed via an AXI-4 interface: - AXI-4 (CL Master and DRAM controller is slave) – 512-bit AXI-4 interface to read/write DDR. There is a single status signal that the DRAM interface is trained and ready for access. DDR access should be gated when the DRAM interface is not ready. The addressing uses ROW/COLUMN/BANK (Interleaved) mapping of AXI address to DRAM Row/Col/BankGroup. The Read and Write channels are serviced with round-robin arbitration (i.e. equal priority). The DRAM interface uses the Xilinx DDR-4 Interface controller. The AXI-4 interface adheres to the Xilinx specification. Uncorrectable ECC errors are signaled with RRESP. A CL can be designed to handle ECC errors by monitoring RRESP on the DDR AXI interfaces. The CL will receive a SLVERR RRESP on an uncorrectable ECC error. **NOTE:** Writing to a DDR location is required before reading the DDR location to initialize the ECC. False ECC errors may occur when un-initialized DDR locations are read. Additionally, there are three statistics interfaces between the Shell and CL (one for each CL DDR controller). If the DDR controllers are being used by the CL, then the interfaces must be connected between the Shell and the DRAM interface controller modules. **WARNING:** If the stats interfaces are not connected, the DDR controllers will not function. However, the CL developer should not otherwise use them since they are specific to Shell management functions. If the DDR controllers are not used by the CL, then the interfaces should be left unconnected. **NOTE:** *There is no performance or frequency difference between the four DRAM controllers regardless whether they resides in the CL or the Shell logic* ## DMA_PCIS Interface -- AXI-4 for Inbound PCIe Transactions (Shell is Master, CL is Slave, 512-bit) This AXI-4 bus is used for: * PCIe transactions mastered by the instance and targeting AppPF BAR4 (PCIS) * DMA transactions (if enabled) (XDMA) It is a 512-bit wide AXI-4 interface. A read or write request on this AXI-4 bus that is not acknowledged by the CL within a certain time window, will be internally terminated by the Shell. If the time-out error happens on a read, the Shell will return `0xFFFFFFFF` data back to the instance. This error is reported through the Management PF and can be retrieved by the AFI Management Tools metric reporting APIs. The AXI ID can be used to determine the source of the transaction: - 0x20 : PCI Interface - 0x00 : XDMA Channel 0 - 0x01 : XDMA Channel 1 - 0x02 : XDMA Channel 2 - 0x03 : XDMA Channel 3 The XDMA interface has backpressure signals to stop read/write transactions. There is an independent signal per transaction type: - cl_sh_dma_wr_full : Stop additional write transaction requests from the XDMA - cl_sh_dma_rd_full : Stop additional read transaction requests from the XDMA When asserted, the XDMA will stop sending further requests for the transaction type (AW or AR channel). Note some number of requests may be asserted after the assertion of backpressure due to FIFO'ing and register slices. This backpressure may be used to throttle XDMA requests if the XDMA requests may delay servicing PCIS requests such that the PCIS request responses would exceed the interface timeout time. ## PCIM interface -- AXI-4 for Outbound PCIe Transactions (CL is Master, Shell is Slave, 512-bit) This is a 512-bit wide AXI-4 interface for the CL to master cycles to the PCIe bus. This can be used, for example, to push data from the CL to instance memory, or read from the instance memory. **WARNING**: The CL must use Physical Addresses, and developers must be careful not to use userspace/virtual addresses. The following PCIe interface configuration parameters are provided from the Shell to the CL as informational: - sh_cl_cfg_max_payload[1:0] – PCIe maximum payload size: | Value | Max Payload Size | |:----------|:-----------------| | 0b00 | 128 Bytes | | 0b01 | 256 Bytes (Most probable value) | | 0b10 | 512 Bytes | | 0b11 | Reserved | - sh_cl_cfg_max_read_req[2:0] - PCIe maximum read request size: | Value | Max Read Request Size | |:----------|:----------| | 0b000 | 128 Bytes | | 0b001 | 256 Bytes | | 0b010 | 512 Bytes (Most probable value) | | 0b011 | 1024 Bytes | | 0b100 | 2048 Bytes | | 0b101 | 4096 Bytes | | Others | Reserved | ### Outbound PCIe AXI-4 Interface Restrictions: - Transfers must not violate PCIe byte enable rules (see byte enable rules below). - Transfers must adhere to all AXI-4 protocol rules ### Byte Enable Rules All AXI-4 transactions to the PCIe interface must adhere to the PCIe Byte Enable rules (see PCI Express Base specification). Rules are summarized below: - All transactions larger than two DW must have contiguous byte enables. - Transactions that are less than two DW may have non-contiguous byte enables. Note on AXI-4 byte enables are signaled using WSTRB. ### AXI4 Error Handling for CL outbound transactions Transactions on AXI4 interface will be terminated and reported as SLVERR on the RRESP/BRESP signals and will not be passed to the instance in the following cases: - PCIe BusMaster Enable (BME) is not set in the PCIe configuration space. - Illegal transaction address; i.e. addressing memory space that isn't supported by the instance. - Transaction crossing 4KB boundaries violating AXI-4/PCIe specifications. - Illegal byte-enable. - Illegal length (AXI-4 write doesn't match length). - Illegal AXI-Size (only full width 512-bit transfers, size=0b110 are supported) - Timeout. Each channel must complete in 8 us or it will timeout: 1. Once AW is asserted, the write data must be supplied in 8us 2. Once RVALID is asserted, RREADY must be asserted, and all data transferred within 8us 3. Once BVALID is asserted, BREADY must be asserted within 8us **NOTE:** If a timeout occurs, the PCIM bus will no longer be functional. This can be cleared by clearing/re-loading the AFI. Refer to [HOWTO_detect_shell_timeout.md](./HOWTO_detect_shell_timeout.md) ## AXI-Lite interfaces for register access -- (SDA, OCL, BAR1) There are three AXI-L master interfaces (Shell is master) that can be used for register access interfaces. Each interface is sourced from a different PCIe PF/BAR. Breaking this into multiple interfaces allows for different software entities to have a control interface into the CL: - SDA AXI-L: Associated with MgmtPF, BAR4. If the developer is using AWS OpenCL runtime Lib (as in SDAccel case), this interface will be used for performance monitors etc. - OCL AXI-L: Associated with AppPF, BAR0. If the developer is using AWS OpenCL runtime lib(as in SDAccel case), this interface will be used for openCL Kernel access - BAR1 AXI-L: Associated with AppPF, BAR1. Please refer to [PCI Address map](./AWS_Fpga_Pcie_Memory_Map.md) for a more detailed view of the address map. #### AXI Slave (AXI-Lite/PCIS) CL Error reporting Each AXI (AXI-4/AXI-L) transaction is terminated with a response (BRESP/RRESP). The AXI responses may signal an error such as Slave Error, or Decode Error. PCIe also has error reporting for non-posted requests (Unsupported Requests/Completer Abort). The shell does not propagate the AXI-4 error responses to the PCIe bus. All PCIe cycles are terminated with non-errored responses. The AXI-4 errors are reported through the Management PF and can be retrieved by the AFI Management Tools metric reporting APIs. ### Accessing Aligned/Unaligned addresses from PCIe (Shell is Master, CL is Slave): The Shell supports DW aligned and unaligned transfers from PCIe (address is aligned/not aligned to DW-4byte boundary) Following are a few examples of how aligned and Unaligned access from PCIe to CL on DMA_PCIS interface work: 1) Writing 8 bytes to DW aligned address through PCIe on AXI4 Interface(DMA_PCIS- 512 bit interface): If the transaction on the pcie is as follows: Addr : 0x0000002000000000 dw_cnt : 2 first_be : 4’b1111 last_be : 4’b1111 Then the transaction on the AXI4 interface will have the following axi attributes: awaddr 64’h0000_0000_0000_0000 awlen = 0 wstrb = 64’h0000_0000_0000_00ff 2) Writing 8 bytes to DW un-aligned address on AXI4 Interface(DMA_PCIS- 512 bit interface): If the transaction on the pcie is as follows: Addr : 0x0000002000000001 dw_cnt : 3 first_be : 4’b1110 last_be : 4’b0001 Then the transaction on the AXI4 interface will have the following axi attributes: awddr = 64’h0000_0000_0000_0001 awlen = 0 wstrb = 64’h0000_0000_0000_01fe The addresses for the Read transactions will work similar to writes. **Note**: If a transaction from PCIe is initiated on AXI-Lite (SDA/OCL/BAR1) interfaces with dw_cnt greater than 1, i.e. >32bits, the transaction is split into multipe 32 bit transactions by the Shell. Following are a few examples of how aligned and Unaligned access from PCIe to CL on SDA/OCL/BAR1 AXI-Lite interfaces work: 1) Writing 8 bytes to DW aligned address on AXI Lite Interface(SDA/OCL/BAR1- 32 bit interface): If the transaction on the pcie is as follows: Addr : 0x0000000002000000 dw_cnt : 2 first_be : 4’b1111 last_be : 4’b1111 Then the transaction on the AXI-Lite interface will be split and will have the following axi attributes: Transaction is split into 2 transfers. 1st transfer awaddr = 32’h0000_0000 wstrb = 4’hf 2nd transfer awaddr = 32’h0000_0004 wstrb = 4’hf 2) Writing 64 bits to DW un aligned address on AXI Lite Interface(SDA/OCL/BAR1- 32 bit interface): If the transaction on the pcie is as follows: Addr : 0x0000000002000001 dw_cnt : 3 first_be : 4’b1110 last_be : 4’b0001 Transaction on AXI-Lite interface will be split and will have the following axi attributes: Transaction is split into 3 transfers. 1st transfer awaddr = 32’h0000_0001 wstrb = 4’he 2nd transfer awaddr = 32’h0000_0004 wstrb = 4’hf 3rd transfer awaddr = 32’h0000_0008 wstrb = 4’h1 The transaction splitting and addresses for the Read transactions will work similar to writes. ## Interrupts 16 user interrupt sources are supported. There is mapping logic that maps the user interrupts to MSI-X vectors. Mapping registers in the DMA controller map the 16 user interrupt sources to MSI-X vectors. There are two sets of signals to generate interrupts: - cl_sh_apppf_irq_req\[15:0\] (from CL to SH) - sh_cl_apppf_irq_ack\[15:0\] (from SH to CL) This interface uses single clock pulses for the req/ack. The CL asserts (active high) cl_sh_apppf_irq_req\[x\] for a single clock to assert the interrupt request to the SH. The SH will respond with a single clock pulse on sh_cl_apppf_irq_ack[x] to acknowledge the interrupt. Once the CL asserts a request on a particular bit[x], it should not assert a request for the same bit[x] until it has received the ack for bit[x] from the SH. The CL may assert requests on other bits[y] (y!=x). ## Miscellaneous signals There are some miscellaneous generic signals between the Shell and CL. ### Integrity Check The 64-bit ch_sh_id0/id1 are used by AWS to validate the signature of the DCP while being loaded into an FPGA in AWS. Initial versions of the HDK and Shell used the 4-tuple: PCIe VendorID, DeviceID, SubsystemVendorID and SubsystemID (which are used during AFI registration via `aws ec2 create-fpga-image` API) as the Integrity check mechanism, following the next mapping - cl_sh_id0 - \[15:0\] – Vendor ID - \[31:16\] – Device ID - cl_sh_id1 - \[15:0\] – Subsystem Vendor ID - \[31:16\] – Subsystem ID In future revisions of the HDK, AWS scripts may override the cl_sh_id0/id1 to include an integrity hash function. ### General Control/Status The functionality of these signals is TBD. - cl_sh_status0[31:0] – Placeholder for generic CL to Shell status. - cl_sh_status1[31:0] – Placeholder for generic CL to Shell status. - sh_cl_ctl0[31:0] – Placeholder for generic Shell to CL control information. - sh_cl_ctl1[31:0] – Placeholder for generic Shell to CL control information. - sh_cl_pwr_state[1:0] – This is the power state of the FPGA. - 0x0 – Power is normal - 0x1 – Power level 1 - 0x2 – Power level 2 - 0x3 – Power is critical and FPGA may be shutting off clocks or powering down ### Virtual LED/DIP There are virtual LED/DIP switches that can be used to control/monitor CL logic. There are 16 LEDs and 16 DIP Switches. Registers exposed to the Management PF are used to control/monitor the LED/DIP Switches. vLED - There are 16 virtual LEDs that can be driven from the CL logic to the SH (cl_sh_status_vled[15:0]). The value of these signals can be read by S/W in the Instance. An API is also provided through AWS Management Software. vDIP - There are 16 virtual DIP switches that drive from the SH to the CL logic (sh_cl_status_vdip[15:0]). These can be used to control logic in the CL. The value of these signals can be written/read by S/W in the instance. An API is also provided through AWS Management Software. These signals are asynchronous to the CL clocks, and the following must be done when using these signals: - vLED: In implementation a false path should be set from the vLED signals. For example in the constraints for place and route add: ``` set_false_path -from [get_cells CL/cl_sh_status_vled_reg*] ``` - vDIP: The vDIP signals should be synchronized to a CL clock before being used. ```verilog always @(posedge clk_main_a0) begin pre_sync_vdip <= sh_cl_status_vdip; sync_vdip <= pre_sync_vdip; end my_logic = sync_vdip[0]; ``` ### Global Counters There are two global counter outputs that increment every 4ns. These can be used to measure time inside of the CL. They are synchronized to clk_main_a0. Note if clk_main_a0 is running slower than 250MHz, the counters will appear to skip values. The counters are: - sh_cl_glcount0[63:0] - sh_cl_glcount1[63:0] ## Implementation Tips Here are some implementation tips. ### Multi-SLR FPGA The VU9P FPGA is a stacked FPGA that has 3 die stacked together. Each Die is called a “Super Logic Region” (SLR). Crossing an SLR boundary is expensive from a timing perspective. It is good practice to pipeline interfaces between major blocks to allow the tool freedom to have SLR crossings between the major blocks. Even with pipelined interfaces it is possible the tool has sub-optimal logic to SLR mapping (i.e. a major block is spread out over multiple SLR's). In this case you may want to at map major blocks to specific SLRs (define the logic that should be constrained to each SLR). Any crossing of SLR’s should have flops on either side (or register slices for AXI). It is ideal to place logic that interfaces to the shell in the same SLR as the Shell logic for that interface. If this is not possible, the first flop/register slice should be placed in the same SLR: * MID SLR: * CL_SH_DDR * BAR1 * PCIM * BOTTOM SLR: * PCIS * OCL * DDR STAT3 * MID/BOTTOM * DDR STAT0 * DDR STAT1 * SDA For the interfaces that are in both the MID/BOTTOM the recommendation is to use flops for pipelining, but don’t constrain to an SLR. Also it is recommended to not use the SDA interface because it spans two SLR's (use BAR1 or OCL instead). You can constrain logic to a particular SLR by creating PBLOCKs (one per SLR), and assigning logic to the PBLOCKs (refer to cl_dram_dma example [cl_pnr_user.xdc](../cl/examples/cl_dram_dma/build/constraints/cl_pnr_user.xdc)). Dataflow should be mapped so that SLR crossing is minimized (for example a pipeline should be organized such that successive stages are mostly in the same SLR). ### Logic Levels You can report all paths that are greater than a certain number of logic levels. This can be used to iterate on timing in synthesis rather than waiting for place and route. For example at 250MHz a general rule of thumb is try to keep logic levels to around 10. The following commands report on all paths that have more than 10 logic levels: * report_design_analysis -logic_level_distribution -of [get_timing_paths -max_paths 10000 -filter {LOGIC_LEVELS > **10**}] * foreach gtp [get_timing_paths -max_paths 5000 ?nworst 100 -filter {LOGIC_LEVELS > **10**}] {puts "[get_property STARTPOINT_PIN $gtp] [get_property ENDPOINT_PIN $gtp] [get_property SLACK $gtp] [get_propert LOGIC_LEVELS $gtp]"} ### Reset Reset fanout can be minimized in an FPGA. This helps with routing congestion. Flops can be initialized in their declaration and generally do not require resets: ```verilog logic[3:0] my_flops = 4’ha; ``` If logic must have a reset, use synchronous resets rather than asynchronous resets: ```verilog always @(posedge clk) if (reset) my_flop <= 4’ha; else my_flop <= nxt_my_flop; ``` If there is still significant fanout of reset, it should be replicated and pipelined. For example each major block could have its own pipelined version of reset. ### Pipeline Registers You have to be careful that pipeline registers do not infer a shift register component. The shift register is placed in a single area and does not accomplish any distance pipelining. Here is a snippet to force the tools to not infer a shift register (shreg_extract="no" directive): ```verilog (*shreg_extract="no"*) logic [WIDTH-1:0] pipe[STAGES-1:0] = '{default:'0}; ``` ### Vivado Analysis Vivado has the following analysis capabilities: * report_methodology (includes CDC report) * clock interaction report (see if paths between async clocks are erroneously being timed) * congestion heat map * power analysis * physical implementation analysis (placement, routing) * linked timing/schematic/physical views
