## Diagram Plugin - Cdk Graph
`@aws-prototyping-sdk/cdk-graph-plugin-diagram`
 \
[](https://aws.github.io/aws-prototyping-sdk/typescript/cdk-graph-plugin-diagram/index.html)
[](https://github.com/aws/aws-prototyping-sdk/tree/mainline/packages/cdk-graph-plugin-diagram)
This plugin generates diagrams utilizing the [cdk-graph](https://aws.github.io/aws-prototyping-sdk/typescript/cdk-graph/index.html) framework.

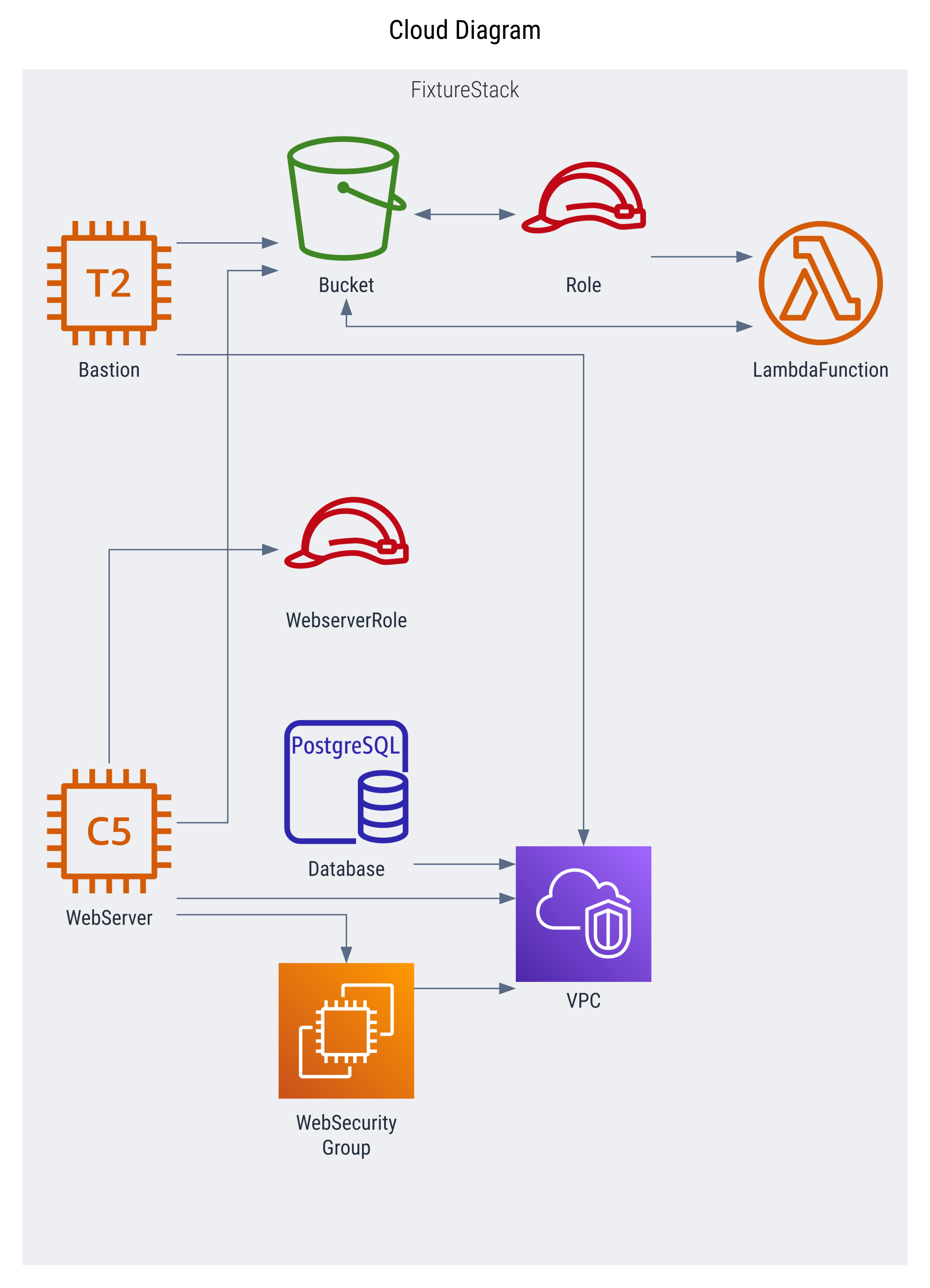

> More comprehensive documentation to come as this package stabilizes.
> **Disclaimer:** This is the first **cdk graph** plugin, it is highly _experimental_, and subject to major refactors as we gain feedback from the community.
> **BREAKING CHANGES** (pre-release)
>
> - `<= v0.14.8`: Only the last stage of a multi stage app will be rendered by default, which is commonly the production stage. Use the `theme.rendering.stage` config option to override this for each graph or in defaults.
| | |
| -------------------------------------------------------------------------- | ----------------------------------------------------------------------- |
|
|
|
### Quick Start
```ts
// bin/app.ts
// Must wrap cdk app with async IIFE function to enable async cdk-graph report
(async () => {
const app = new App();
// ... add stacks, etc
const graph = new CdkGraph(app, {
plugins: [new CdkGraphDiagramPlugin()],
});
app.synth();
// async cdk-graph reporting hook
await graph.report();
})();
// => cdk.out/diagram.dot
// => cdk.out/diagram.svg
// => cdk.out/diagram.png
```
> This plugin currently only supports `async report()` generation following the above example. **Make sure to wrap the cdk app with _async IIFE_.**
### Supported Formats
| Format | Status | Extends | Provider |
| ----------------------------------------------- | ---------------------------------------------------------- | ----------------------------------------------- | ----------------------------------- |
| [DOT](https://graphviz.org/docs/outputs/canon/) |  | - | [Graphviz](docs/graphviz/README.md) |
| [SVG](https://graphviz.org/docs/outputs/svg/) |  | [DOT](https://graphviz.org/docs/outputs/canon/) | [Graphviz](docs/graphviz/README.md) |
| [PNG](https://graphviz.org/docs/outputs/png/) |  | [SVG](https://graphviz.org/docs/outputs/canon/) | [Graphviz](docs/graphviz/README.md) |
---
### Diagram Providers
| Provider | Status | Formats |
| ----------------------------------- | -------------------------------------------------------------- | --------------------------------------------------------------------------------------------------------------------------------------------- |
| [Graphviz](docs/graphviz/README.md) |  | [DOT](https://graphviz.org/docs/outputs/canon/), [SVG](https://graphviz.org/docs/outputs/svg/), [PNG](https://graphviz.org/docs/outputs/png/) |
| [Drawio](docs/drawio/README.md) |  | _TBD: very early stage design and development_ |
---
### Configuration
See [IPluginConfig](https://aws.github.io/aws-prototyping-sdk/typescript/cdk-graph-plugin-diagram/index.html#ipluginconfig) interface for details, and look in [unit tests](https://github.com/aws/aws-prototyping-sdk/tree/mainline/packages/cdk-graph-plugin-diagram/test/graphviz) for additional examples.
By default the diagram plugin will generate a single "compact" preset diagram.
It is capable of creating multiple diagrams each with different configurations, as well as defining the defaults to use.
**Defaults Option**
Changing the `defaults` option will modify default options for all diagrams, including the default diagram.
> See [IDiagramConfigBase](https://aws.github.io/aws-prototyping-sdk/typescript/cdk-graph-plugin-diagram/index.html#idiagramconfigbase) interface for `plugin.defaults` options.
```ts
new CdkGraphDiagramPlugin({
defaults: {
theme: "dark",
filterPlan: {
preset: FilterPreset.NONE,
},
},
});
// => results in a single diagram that is "verbose" and "dark", since no resources are filtered
```
**Diagrams Option**
By modifying the `diagrams` option of the plugin you have full control over the rendering of diagrams, and can render **multiple** diagrams.
> See [IDiagramConfig](https://aws.github.io/aws-prototyping-sdk/typescript/cdk-graph-plugin-diagram/index.html#idiagramconfig) interface for diagram config options.
```ts
new CdkGraphDiagramPlugin({
diagrams: [
{
name: "diagram-1",
title: "Diagram 1 (dark + compact)",
theme: "dark",
// the default `filterPlan: { preset: FilterPreset.COMPACT }` will still apply
},
{
name: "diagram-2",
title: "Diagram 2 (dark + verbose)",
theme: "dark",
filterPlan: {
preset: FilterPreset.NONE,
},
},
{
name: "diagram-3",
title: "Diagram 3 (no defaults)",
ignoreDefaults: true, // default options will not be applied (theme, filterPlan, etc)
},
],
});
```
#### Example Diagram Configs (expand below)
The below examples define individual diagram configs in the `diagrams` options of the plugin as described above.
```ts
new CdkGraphDiagramPlugin({
diagrams: [
// ... insert diagram config(s) here - see below for examples
],
});
```
##### **Presets**
Preset: compact
[
](docs/assets/cdk-graph-plugin-diagram/compact.png)
```ts
{
name: "compact",
title: "Compact Diagram",
filterPlan: {
preset: FilterPreset.COMPACT,
},
},
```
Preset: verbose
[
](docs/assets/cdk-graph-plugin-diagram/verbose.png)
```ts
{
name: "verbose",
title: "Verbose Diagram",
format: DiagramFormat.PNG,
ignoreDefaults: true,
},
```
##### **Focus**
Focus: hoist
[

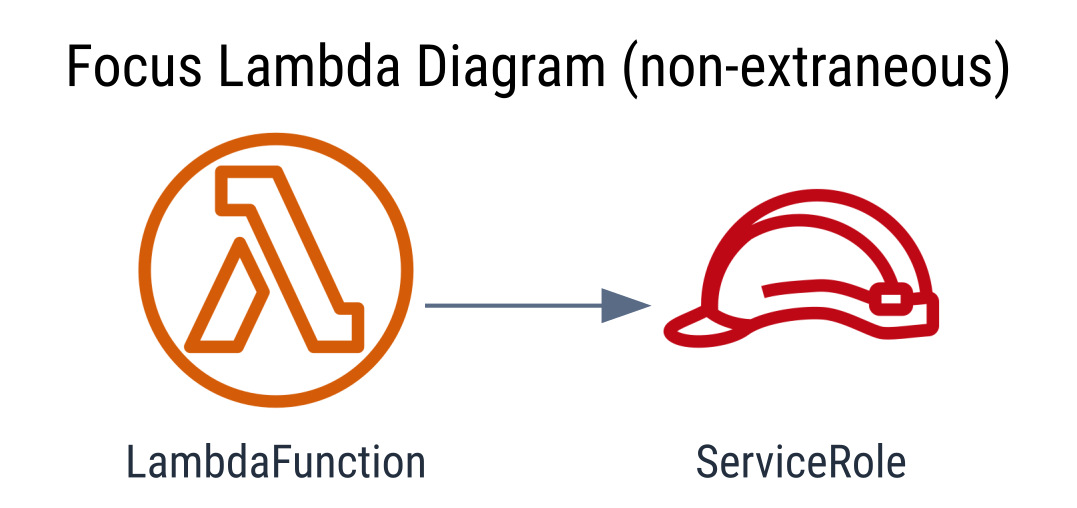

](docs/assets/cdk-graph-plugin-diagram/focus.png)
```ts
{
name: "focus",
title: "Focus Lambda Diagram (non-extraneous)",
filterPlan: {
focus: (store) =>
store.getNode(getConstructUUID(app.stack.lambda)),
preset: FilterPreset.NON_EXTRANEOUS,
},
ignoreDefaults: true,
},
```
Focus: no hoist
[

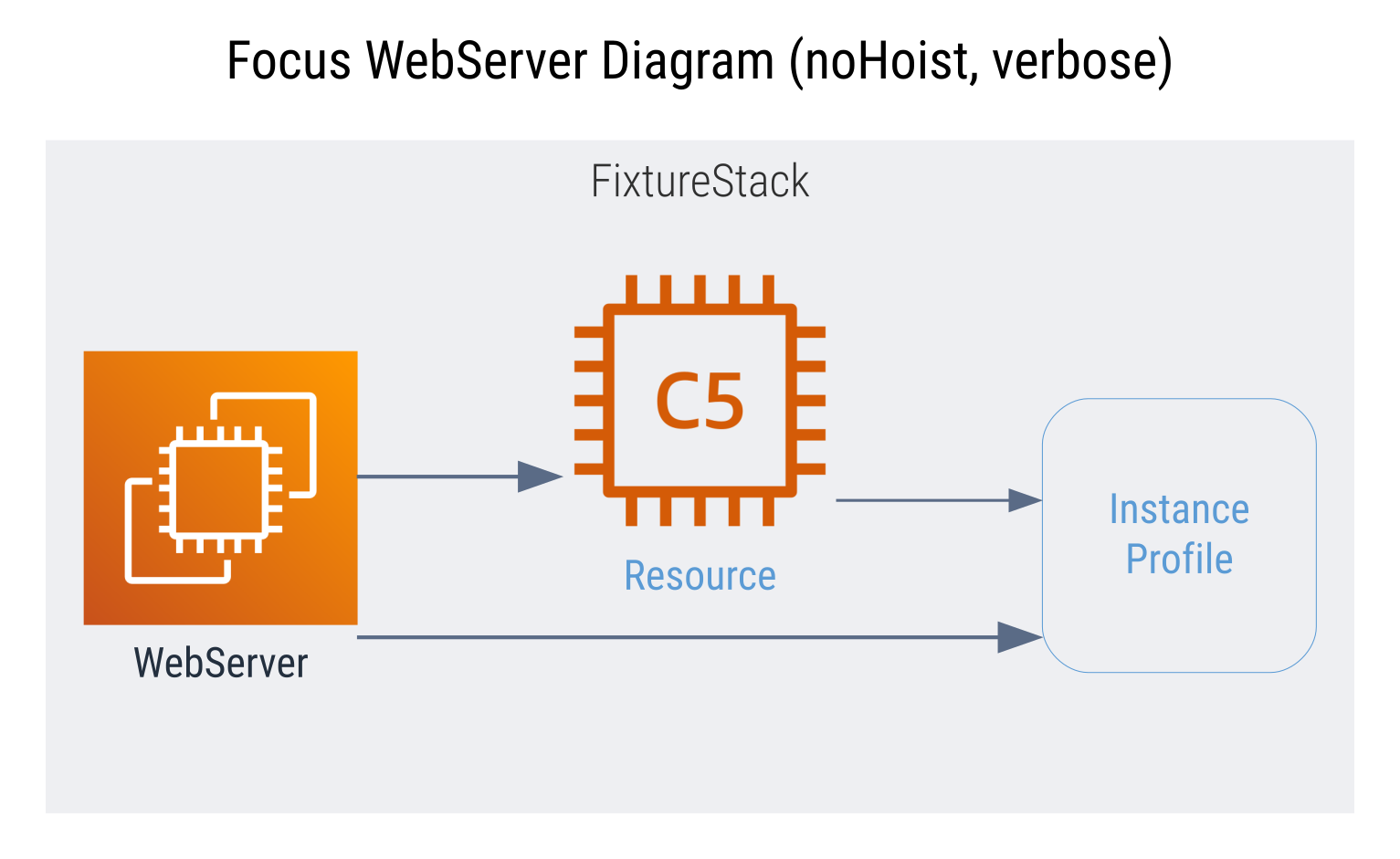

](docs/assets/cdk-graph-plugin-diagram/focus-nohoist.png)
```ts
{
name: "focus-nohoist",
title: "Focus WebServer Diagram (noHoist, verbose)",
filterPlan: {
focus: {
node: (store) =>
store.getNode(getConstructUUID(app.stack.webServer)),
noHoist: true,
},
},
ignoreDefaults: true,
},
```
##### **Filters**
Filter: Include specific cfn resource types
[

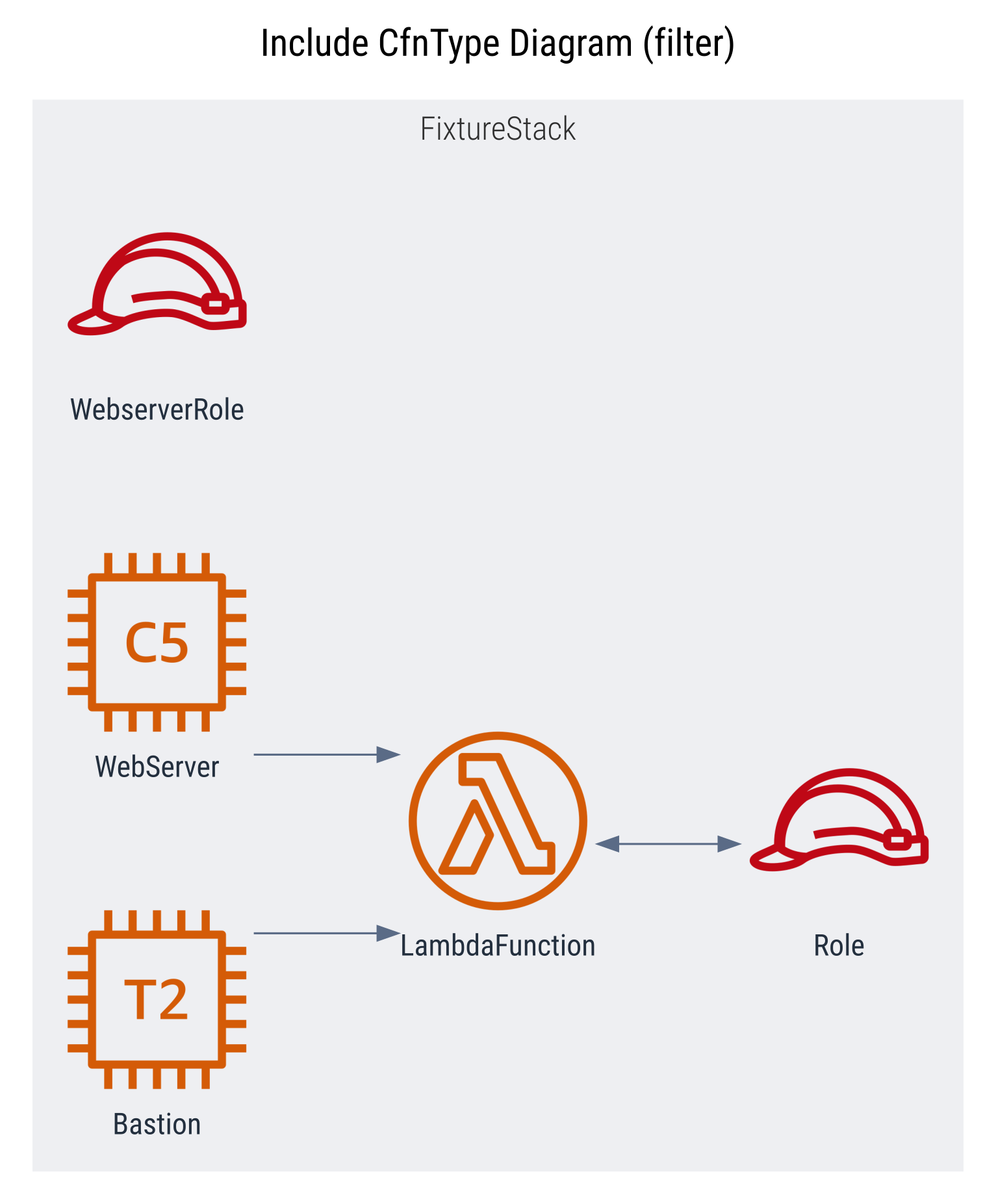

](docs/assets/cdk-graph-plugin-diagram/filter-cfntype-include.png)
```ts
{
name: "includeCfnType",
title: "Include CfnType Diagram (filter)",
filterPlan: {
filters: [
Filters.includeCfnType([
aws_arch.CfnSpec.ServiceResourceDictionary.EC2.Instance,
/AWS::Lambda::Function.*/,
"AWS::IAM::Role",
]),
Filters.compact(),
],
},
},
```
Filter: Exclude specific cfn resource types
[

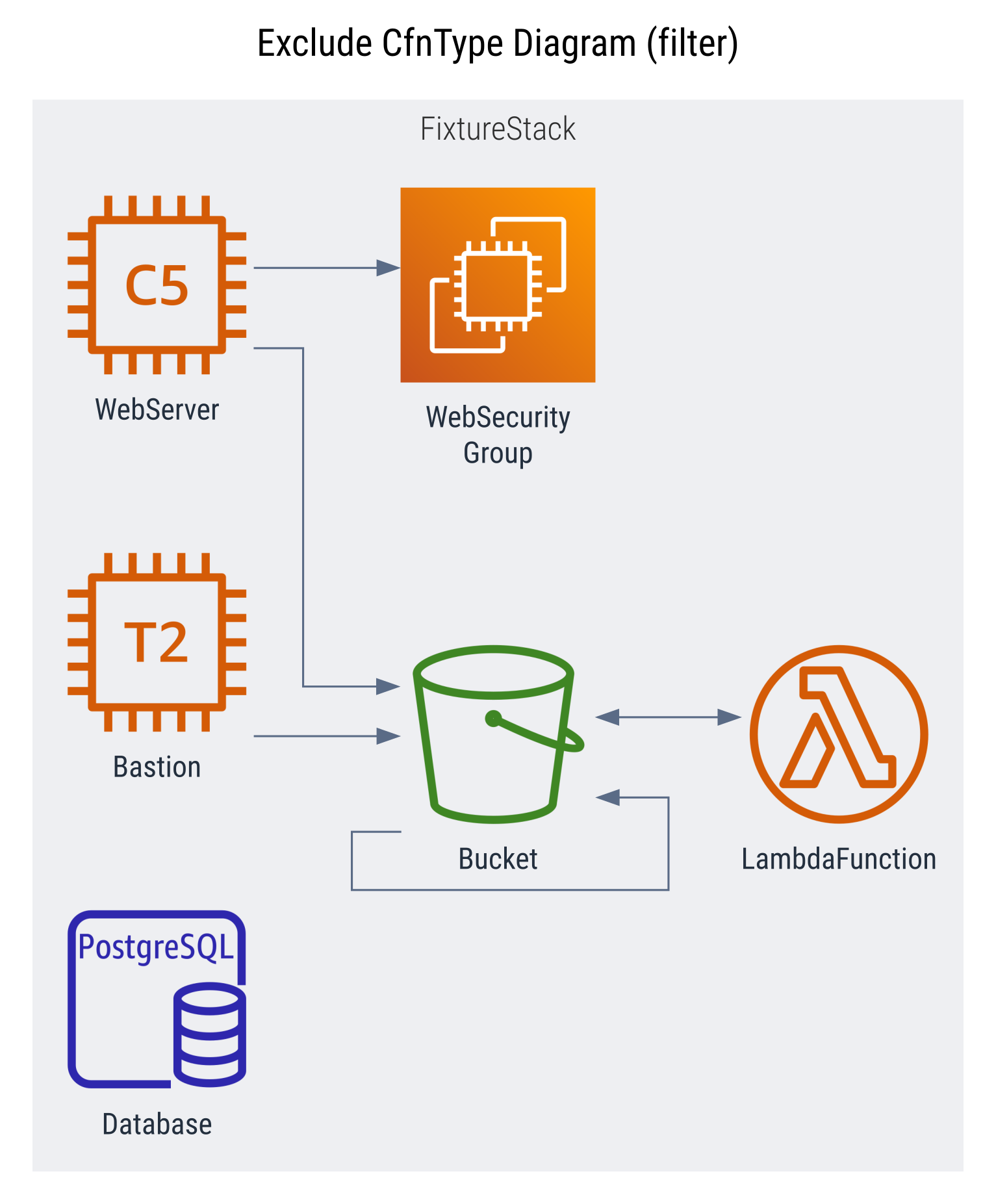

](docs/assets/cdk-graph-plugin-diagram/filter-cfntype-exclude.png)
```ts
{
name: "excludeCfnType",
title: "Exclude CfnType Diagram (filter)",
filterPlan: {
filters: [
Filters.excludeCfnType([
/AWS::EC2::VPC.*/,
aws_arch.CfnSpec.ServiceResourceDictionary.IAM.Role,
]),
Filters.compact(),
],
},
},
```
Filter: Include specific graph node types
[

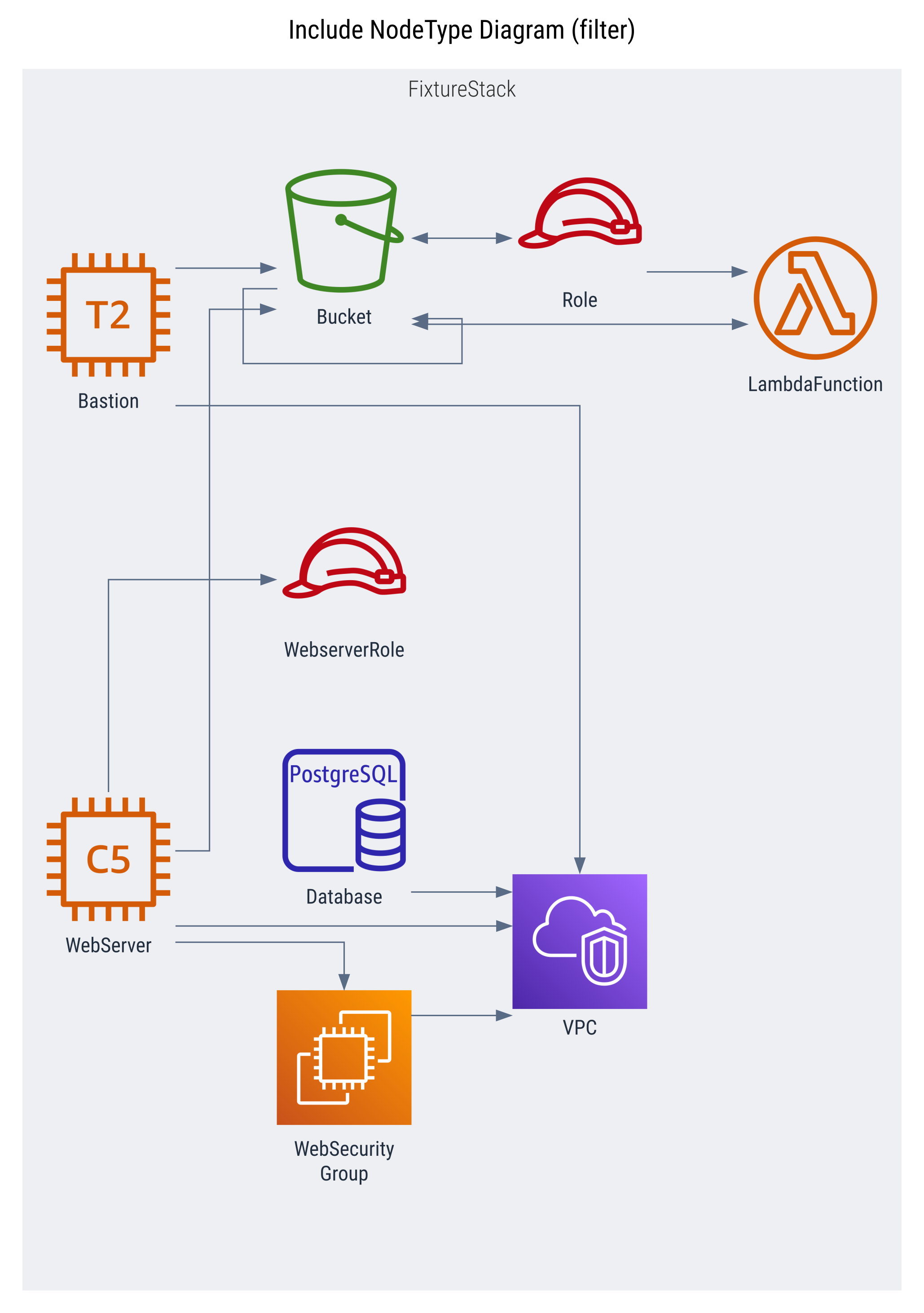

](docs/assets/cdk-graph-plugin-diagram/filter-nodetype-include.png)
```ts
{
name: "includeNodeType",
title: "Include NodeType Diagram (filter)",
filterPlan: {
filters: [
Filters.includeNodeType([
NodeTypeEnum.STACK,
NodeTypeEnum.RESOURCE,
]),
Filters.compact(),
],
},
},
```
Filter: Include specific graph node types
[](docs/assets/cdk-graph-plugin-diagram/filter-nodetype-include.png)
```ts
{
name: "includeNodeType",
title: "Include NodeType Diagram (filter)",
filterPlan: {
filters: [
Filters.includeNodeType([
NodeTypeEnum.STACK,
NodeTypeEnum.RESOURCE,
]),
Filters.compact(),
],
},
},
```
Filter: Exclude specific graph node types
[
](docs/assets/cdk-graph-plugin-diagram/filter-nodetype-exclude.png)
```ts
{
name: "excludeNodeType",
title: "Exclude NodeType Diagram (filter)",
filterPlan: {
filters: [
Filters.excludeNodeType([
NodeTypeEnum.NESTED_STACK,
NodeTypeEnum.CFN_RESOURCE,
NodeTypeEnum.OUTPUT,
NodeTypeEnum.PARAMETER,
]),
Filters.compact(),
],
},
},
```
##### **Themes**
Theme: Dark

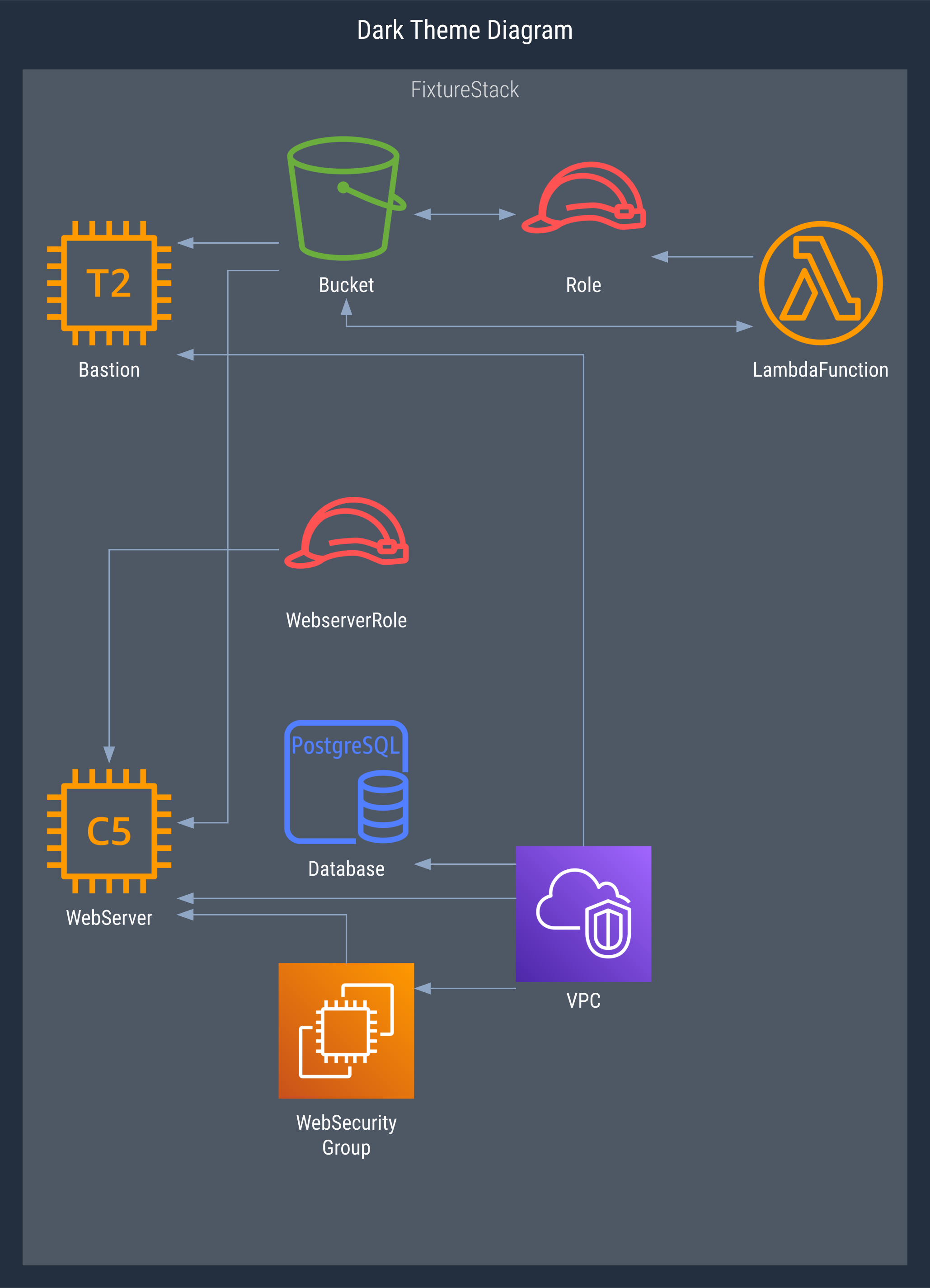

[](docs/assets/cdk-graph-plugin-diagram/dark.png)
```ts
{
name: "Dark",
title: "Dark Theme Diagram",
theme: theme,
},
```
Theme: Dark - render service icons
[
](docs/assets/cdk-graph-plugin-diagram/dark-services.png)
```ts
{

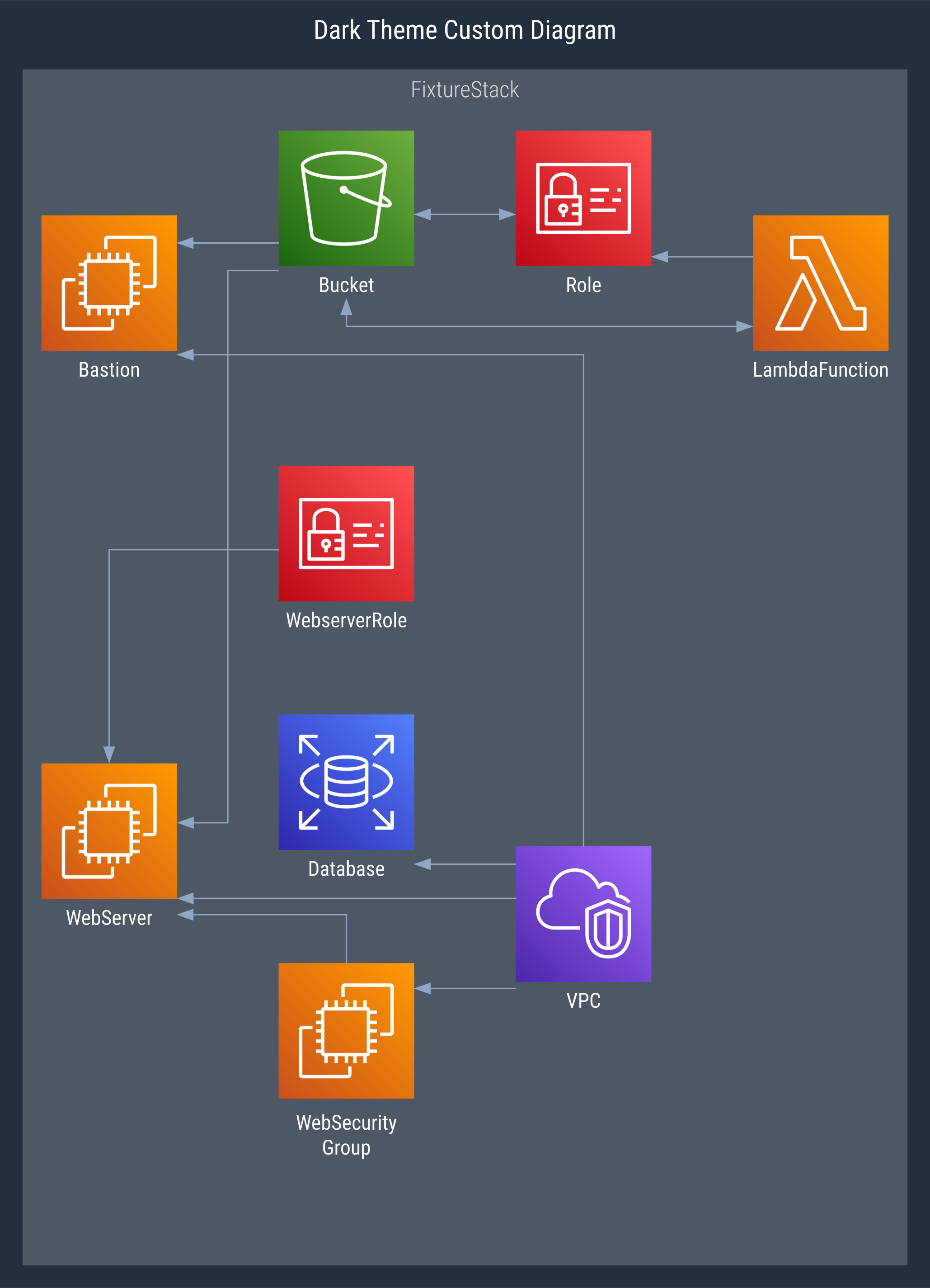

name: "dark-services",
title: "Dark Theme Custom Diagram",
theme: {
theme: theme,
rendering: {
resourceIconMin: GraphThemeRenderingIconTarget.SERVICE,
resourceIconMax: GraphThemeRenderingIconTarget.CATEGORY,
cfnResourceIconMin: GraphThemeRenderingIconTarget.DATA,
cfnResourceIconMax: GraphThemeRenderingIconTarget.RESOURCE,
},
},
},
```
Theme: Dark - verbose
[
](docs/assets/cdk-graph-plugin-diagram/dark-verbose.png)
```ts
{
name: "dark-verbose",
title: "Dark Theme Verbose Diagram",
ignoreDefaults: true,
theme: theme,
},
```
---
### Next Steps
- [ ] Battle test in the wild and get community feedback
- [ ] Improve image coverage and non-image node rendering
- [ ] Add drawio support
- [ ] Add common filter patterns and helpers
- [ ] Enable generating diagrams outside of synthesis process (maybe CLI)
- [ ] Implement interactive diagram, with potential for dynamic filtering and config generation
- [ ] Support using interactive diagram as config generator for other plugins (or as separate plugin that depends on this)
---
Inspired by [cdk-dia](https://github.com/pistazie/cdk-dia) and [cfn-dia](https://github.com/mhlabs/cfn-diagram) with ❤️
