Orchestrating the data pipeline

• Orchestrate the data pipeline using the Workflow feature
  • Reviewing the results
• Orchestrate YOUR data pipeline using Workflows

In this lab we will continue to work with Glue and convert the raw data we have extracted in the previous lab into a curated data set by making some automation.

Please note: this Lab depends on the steps executed in the Transformation LAB; In case you didn’t finish that one yet, now is the time :)

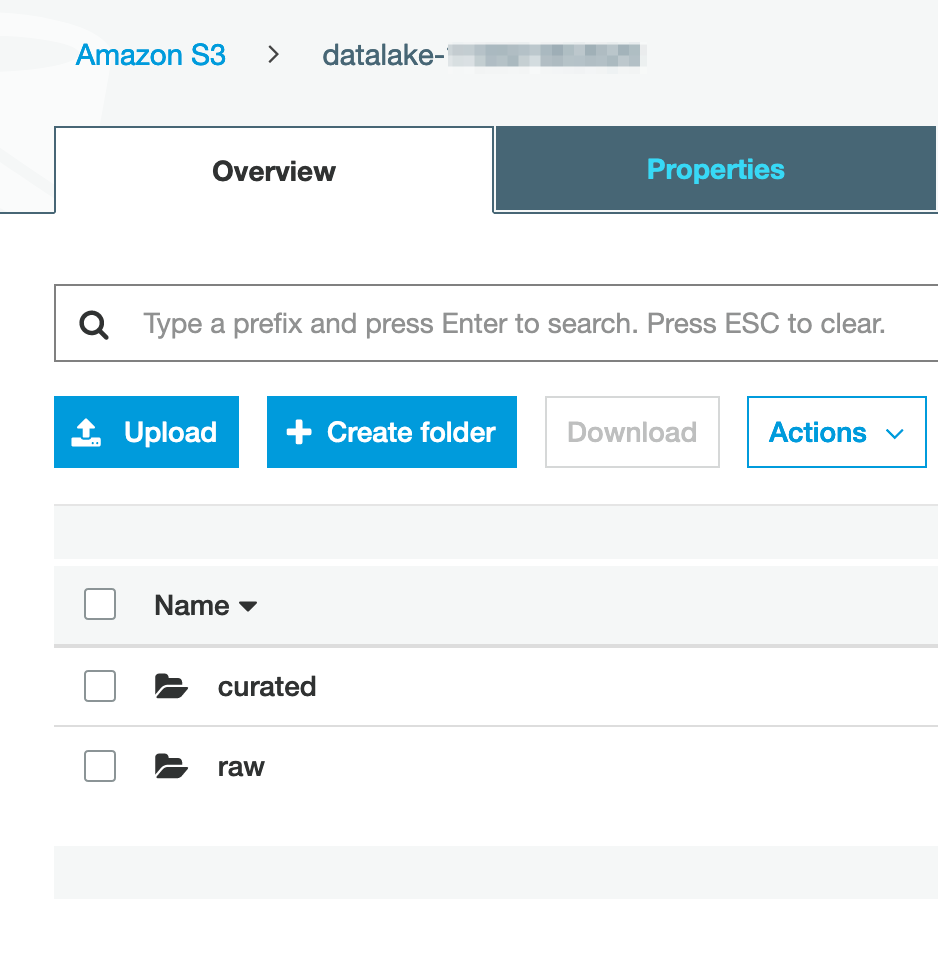

At this stage we have Glue Jobs configured to convert our raw data into Parquet. We should be able to observe 2 main folders in our data-lake bucket (raw and curated).

Orchestrate the data pipeline using the Workflow feature

When you only have a Glue job or a single Crawler that needs to be run periodically, you can schedule it with Glue scheduler or maybe you can use Amazon CloudWatch events with a Lambda function. But if you need more complex flows - for example chaining multiple jobs and crawlers, running different jobs in parallel - Glue provides a workflow mechanism.

The example presented here assumes a lineal/ dependant approach - some jobs before running the others. The plan is to create a pipeline, which will refresh the data-set every once in a while.

Another example of dependent jobs are jobs that extracts data from other source and ingest it into your data lake before kicking off another transformation jobs.

For this basic example we decided to automate the following steps:

• Transform data into parquet
• Crawl Parquet/ curated data

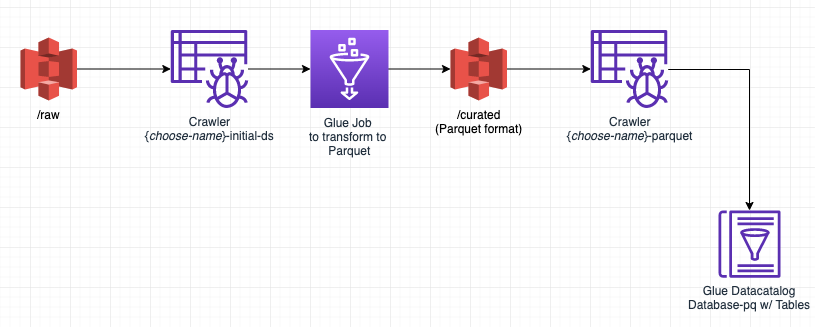

The first three steps were done in the previous part. The updated diagram of what we did including the crawler should look something like this:

Now, let’s automate this process so we don’t have to worry about it…

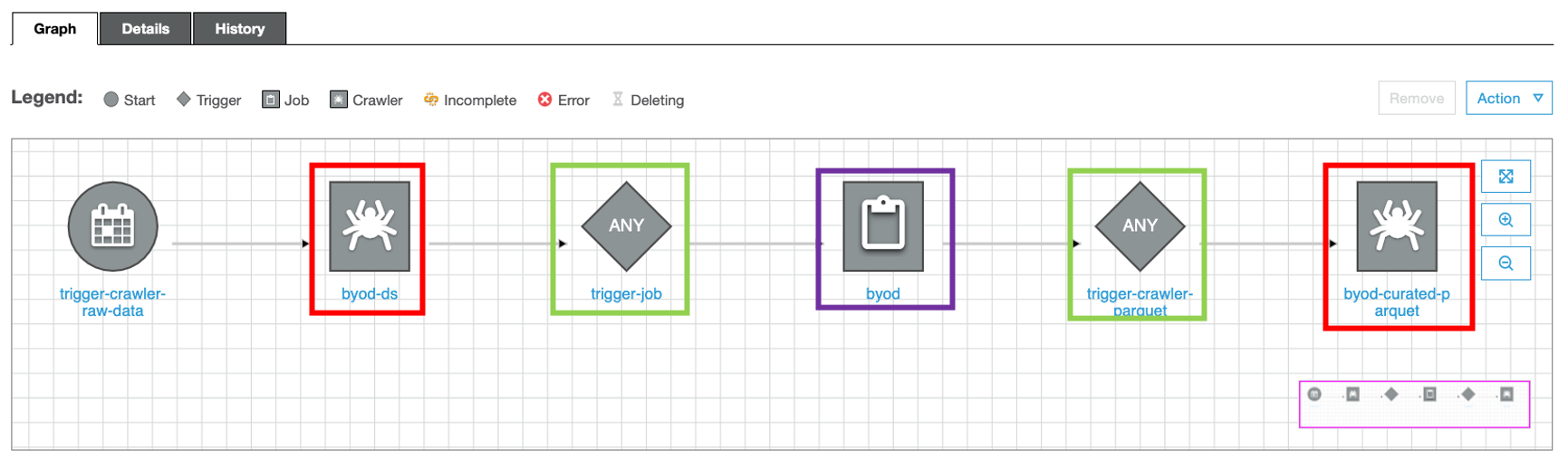

Once we are done, it should look something like this:

Let’s get started - navigate to the Workflows in the ETL section on the left side-pane.

• we start by clicking on the Add Workflow button;
• add a name for our workflow (e.g. byod) and press the Add Workflow button;

Now, in the new created workflow, please click on Add Trigger

• Make sure you select the Add New tab;
• Define a Name for the new trigger (trigger-crawler-rawdata);
• Trigger Type - Schedule

Now, let’s specify the Frequency before you press Add (let’s say you run this workflow once a day);

Now, we need to configure the job that is going to be triggered. Click Add Node

Select the crawler that needs to run first- In this case, we want the raw data crawler created in the first step (you probably named it {choose-name}-initial-ds), then click Add.

Until this point it should look something like this

now, we need to set up the job that converts data into parquet. For that please click on the crawler (byod-ds in the image) and then click in Add Trigger

Repeat the creation of the trigger Note: Make sure you select Add new at the top and give it a name (trigger-job-parquet). The trigger type Event should be already selected and the option Start after ANY watched event as well. After done, it should look something like this

Click on the trigger and then Add Node

Select the job that needs to run - In this case, we want the transformation job created in the first step (you probably named it TABLE-NAME-1-job), then click Add.

NOTE: If you have multiple tables, you will need to repeat the last step to trigger job of each table.

We are almost there, however there’s one more thing: we need to add the crawler for the curated data - Please follow the same steps

Click on the byod job and then click in Add Trigger.

Make sure you Add new one. Choose a name and the trigger to be Event

For the Event, we want that after the previous job is done (SUCCESS) then trigger the crawler

At this point, if you have multiple tables, please do the following to add other jobs to watch:

1. Click on the created trigger
2. Click Action menu in the top right of the diagram.
3. Choose Add jobs/crawlers to watch
4. Mark other jobs to be watched as checked and click Add

Now, please click on the trigger, and then Add Node.

Add the curated crawler to be triggered (In this case the crawler created in the previous step - you probably named it something like this {choose-name}-curated-ds)

Reviewing the results

Once we are ready, we can try out the workflow by clicking on Run in the Actions menu.

Once you selected a job, you can monitor the execution status in the History TAB in the bottom panel; If the job(s) succeeded, visit the Metrics TAB to see resource utilisation and data movement information; Also note that the jobs can take quite a bit of time to end, about 15 minutes in total.

When jobs succeed, you should find in your S3 bucket a folder called curated with subfolders for all your tables.

By selecting the latest Job and clicking on the View run details you can monitor the execution results of the data processing pipeline:

Once the pipeline succeeded at least once, we should be able to observe the newly created databases in the data catalog.

When you navigate to the Tables, you will observe tables created from your data files.

“What can I do with it?", you may wonder. Stay tuned, we will cover this in great details in the next session.

Orchestrate YOUR data pipeline using Workflows
